NC5FBV-SW

NC5FBV-SW

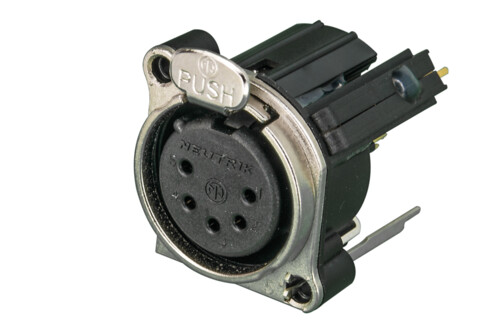

5 polige Chassisbuchse, integrierter Switch-Schalter, Erdung: Separater Massekontakt mit dem Gehäuse des Gegensteckers und Front Panel, vertikale Leiterplattenmontage

Der Switch wird beim Einstecken eines XLR Steckers aktiviert und bietet die Möglichkeit die gesteckte Verbindung anzuzeigen, zu überwachen und zu kontrollieren. Der Switch enthält einen normal open und normal closed Kontakt.

Die B Serie ist der A Serie sehr ähnlich. Der Unterschied besteht in einem Metallring an der Frontseite, zur besten Masseverbindung zur Frontplatte. Der Rundum Massekontakt stellt einen Schirm gegen EMI Störungen dar.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Metallring an der Frontseite als Rundum Schirmung gegen EMI und HF Störungen
  • Female Gabelkontakt
  • Mit Wechselschalter ausgestattet
  • Normally open, normally closed (NO - NC) Kontakt
  • Switch wird beim Einstecken eines XLR Steckers aktiviert

Downloads

  • Produkt Katalog - Kapitel XLR
  • 3D File NC5FBV-SW
  • Strichzeichnung NC5FBV-SW
  • Strichzeichnung NC5FBV-SW

Technische Informationen

Produkte
Titel NC5FBV-SW
Verbindungstyp XLR
Geschlecht female
Elektrisch
Kapazität zwischen Kontakten ≤ 7 pF
Durchgangswiderstand ≤ 6 mΩ
Durchschlagsfestigkeit 1,5 kVdc
Isolationswiderstand > 10 GΩ (initial)
Nennstrom pro Kontakt 3 A
Nennspannung < 50 V
Erdungsoptionen Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanische Daten
Einsteckkraft ≤ 20 N
Aussteckkraft ≤ 20 N
Lebensdauer > 1000 mating cycles
Leiterquerschnitt
Anschlussart vertical PCB mount
Verriegelung Latch lock
Einbaurichtung Rear mounting
Gehäuseform B
Mounting A-Screw
Material
Kontakte Bronze (CuSn6)
Einsatz Polyamide (PA66)
Verriegelungselement Steel Ck67
Flange Metal
Umwelt
Entflammbarkeit UL 94 V-0
Normenkompatibilität IEC 61076-2-103
Schutzklasse IP 40
Lötbarkeit Complies with IEC 68-2-20
Temperaturbereich -30 °C to +80 °C

Zubehör

A-SCREW
A-SCREW-1-8
ACRF
ACRF-*
dummyPLUG Case
CAS-DUMMY
NDF
NDF
SCF
SCF
SFAV
SFAV
