neutrik > Produkte > NC5FBV
NC5FBV

NC5FBV

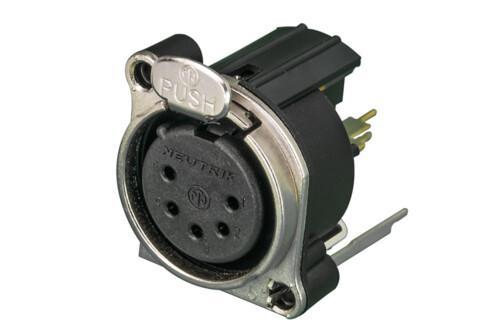

5 polige Chassisbuchse, Erdung: Separater Massekontakt mit dem Gehäuse des Gegensteckers und Front Panel, vertikale Leiterplattenmontage

Die B Serie ist der A Serie sehr ähnlich. Der Unterschied besteht in einem Metallring an der Frontseite, zur besten Masseverbindung zur Frontplatte. Der Rundum Massekontakt stellt einen Schirm gegen EMI Störungen dar.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Kleinster XLR Einbaustecker, höchste Packdichte
  • Metallring für einen rundum Massekontakt für beste EMI und HF Schirmung
  • Female Gabelkontakte
  • Gehäuse Entflammbarkeit UL 94 V-0

Downloads

  • Strichzeichnung NC5FBV
  • Strichzeichnung NC5FBV
  • 3D File NC5FBV
  • Produkt Katalog - Kapitel XLR

Technische Informationen

Produkte
Titel NC5FBV
Verbindungstyp XLR
Geschlecht female
Elektrisch
Kapazität zwischen Kontakten ≤ 7 pF
Durchgangswiderstand ≤ 6 mΩ
Durchschlagsfestigkeit 1,5 kVdc
Isolationswiderstand > 10 GΩ (initial)
Nennstrom pro Kontakt 3 A
Nennspannung < 50 V
Erdungsoptionen Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanische Daten
Einsteckkraft ≤ 20 N
Aussteckkraft ≤ 20 N
Lebensdauer > 1000 mating cycles
Leiterquerschnitt
Anschlussart vertical PCB mount
Verriegelung Latch lock
Einbaurichtung Rear mounting
Gehäuseform B
Mounting A-Screw
Material
Kontakte Bronze (CuSn6)
Einsatz PA66
Verriegelungselement Steel Ck67
Ring Zinc diecast (ZnAl4Cu1)
Flange Metal
Umwelt
Entflammbarkeit UL 94 V-0
Normenkompatibilität IEC 61076-2-103
Schutzklasse IP 40
Lötbarkeit Complies with IEC 68-2-20
Temperaturbereich -30 °C to +80 °C

Zubehör

A-SCREW
A-SCREW-1-8
ACRF
ACRF-*
dummyPLUG Case
CAS-DUMMY
NDF
NDF
SCF
SCF
SFAV
SFAV
