neutrik > Produkte > NC3MBH-1
NC3MBH-1

NC3MBH-1

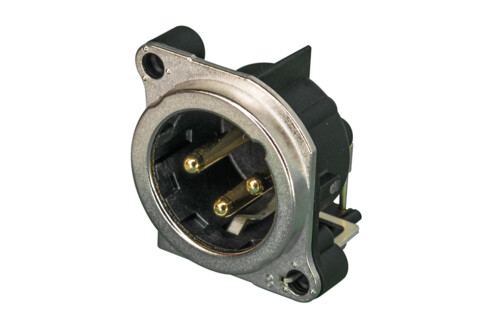

3 poliger Chassisstecker, Erdung: Gehäuse des Gegensteckers mit Pin 1 und Front Panel, Stahl Verriegelungselement, horizontale Leiterplattenmontage

Die B Serie ist der A Serie sehr ähnlich. Der Unterschied besteht in einem Metallring an der Frontseite, zur besten Masseverbindung zur Frontplatte. Der Rundum Massekontakt stellt einen Schirm gegen EMI Störungen dar. UL recognized component.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Kleinster XLR Einbaustecker, höchste Packdichte
  • Metallring für einen rundum Massekontakt für beste EMI und HF Schirmung
  • Gehäuse Entflammbarkeit UL94V-0

Downloads

  • 3D File NC3MBH
  • Strichzeichnung NC3MBH-1
  • Strichzeichnung NC3MBH-1
  • Produkt Katalog - Kapitel XLR

Links

  • UL Certificate (ECBT2.E135070)

Technische Informationen

Produkte
Titel NC3MBH-1
Verbindungstyp XLR
Geschlecht male
Elektrisch
Kapazität zwischen Kontakten ≤ 4 pF
Durchgangswiderstand ≤ 6 mΩ
Durchschlagsfestigkeit 1,5 kVdc
Isolationswiderstand 10 GΩ (initial)
Nennstrom pro Kontakt 6 A
Nennspannung < 50 V
Erdungsoptionen mating connector shell to pin1 and front panel
Mechanische Daten
Einsteckkraft ≤ 20 N
Aussteckkraft ≤ 20 N
Lebensdauer > 1000 mating cycles
Leiterquerschnitt
Anschlussart Horizontal PCB mount
Verriegelung Latch lock
Einbaurichtung Rear mounting
Gehäuseform B
Mounting B-Screw
Material
Kontaktbeschichtung 0.2 µm AuCo over 2µm NiP15 (Tribor®)
Kontakte Brass (CuZn35Pb2)
Einsatz Polyamide (PA 6.6 30 % GR)
Verriegelungselement Ck 67 steel, treated
Ring Zinc diecast (ZnAl4Cu1), gal Ni
Umwelt
Zulassungen UL
Entflammbarkeit UL 94 V-0
Normenkompatibilität IEC 61076-2-103
Lötbarkeit Complies with IEC 68-2-20
Temperaturbereich -30 °C to +80 °C

Zubehör

B-SCREW
B-SCREW-1-8
dummyPLUG Case
CAS-DUMMY
NDM
NDM
SCM
SCM
