neutrik > Produkte > NC3MAAH-0
NC3MAAH-0

NC3MAAH-0

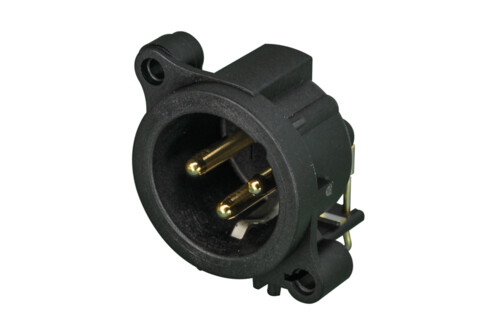

3 polige Chassisstecker, Erdung: Masse Kontakt verbunden mit Steckergehäuse, jedoch nicht mit Frontplatte und Pin 1, horizontale Leiterplattenmontage

Günstigste XLR Chassis Serie im runden Plastikgehäuse zur Panelmontage. Frontplattenauschnitt und Leiterplatten Layout sind zu 100% mit der A Serie kompatibel. "Tulpenkontakt" mit hohem Kontaktdruck für höchste Beständigkeit. Entflammbarkeit UL94 HB. UL recognized component.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Günstigste XLR Chassis Serie
  • "Tulpenkontakt" mit hohem Kontaktdruck für höchste Beständigkeit
  • Kontakte und PCB Anschlüsse teilweise mit Gold beschichtet für beste Leitfähigkeit und Lötbarkeit

Downloads

  • 3D Model NC3MAAH-0
  • Strichzeichnung NC3MAAH-0
  • Strichzeichnung NC3MAAH-0
  • Produkt Katalog - Kapitel XLR

Links

  • UL Certificate (ECBT2.E135070)

Technische Informationen

Produkte
Titel NC3MAAH-0
Verbindungstyp XLR
Geschlecht male
Elektrisch
Kapazität zwischen Kontakten ≤ 4 pF
Durchgangswiderstand ≤ 6 mΩ
Durchschlagsfestigkeit 1,5 kVdc
Isolationswiderstand > 10 GΩ (initial)
Nennstrom pro Kontakt 6 A
Nennspannung < 50 V
Erdungsoptionen Ground contact connected to shell ground, but not to chassis and Pin 1
Mechanische Daten
Einsteckkraft ≤ 20 N
Aussteckkraft ≤ 20 N
Lebensdauer > 1000 mating cycles
Anschlussart Horizontal PCB mount
Verriegelung Latch lock
Einbaurichtung Rear mounting
Gehäuseform A
Mounting A-Screw
Material
Kontakte Brass (CuZn35Pb2)
Gehäuse Polyamide (PA 6.6 30 % GR)
Umwelt
Zulassungen UL
Entflammbarkeit UL 94 HB
Normenkompatibilität IEC 61076-2-103
Schutzklasse IP 40
Lötbarkeit Complies with IEC 68-2-20
Temperaturbereich -30 °C to +80 °C

Zubehör

A-SCREW
A-SCREW-1-8
dummyPLUG Case
CAS-DUMMY
NDF
NDF
SCF
SCF
