neutrik > Produkte > NC3FBH1

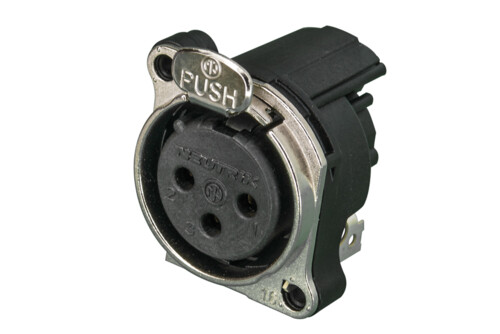

NC3FBH1

NC3FBH1

3 polige Chassisbuchse, Erdung: Gehäuse des Gegensteckers mit Pin 1 und Front Panel, horizontale Leiterplattenmontage

Die B Serie ist der A Serie sehr ähnlich. Der Unterschied besteht in einem Metallring an der Frontseite, zur besten Masseverbindung zur Frontplatte. Der Rundum Massekontakt stellt einen Schirm gegen EMI Störungen dar. UL recognized component.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Kleinster XLR Einbaustecker, höchste Packdichte
  • Metallring für einen rundum Massekontakt für beste EMI und HF Schirmung
  • Female Tulpenkontakte
  • Gehäuse Entflammbarkeit UL94V-0

Downloads

  • 3D File NC3FBH1
  • Strichzeichnung NC3FBH1
  • Strichzeichnung NC3FBH1
  • Produkt Katalog - Kapitel XLR

Links

  • UL Certificate (ECBT2.E135070)

Technische Informationen

Produkte
Titel NC3FBH1
Verbindungstyp XLR
Geschlecht female
Elektrisch
Kapazität zwischen Kontakten ≤ 4 pF
Durchgangswiderstand ≤ 6 mΩ
Durchschlagsfestigkeit 1,5 kVdc
Isolationswiderstand > 10 GΩ (initial)
Nennstrom pro Kontakt 6 A
Nennspannung < 50 V
Erdungsoptionen Pin 1 connected direct to front panel and connector shell, no separate ground contact
Mechanische Daten
Einsteckkraft ≤ 20 N
Aussteckkraft ≤ 20 N
Lebensdauer > 1000 mating cycles
Leiterquerschnitt
Anschlussart Horizontal PCB mount
Verriegelung Latch lock
Einbaurichtung Rear mounting
Gehäuseform B
Mounting B-Screw
Material
Kontakte Bronze (CuSn6)
Einsatz Polyamide (PA 6.6 30 % GR)
Verriegelungselement Steel Ck67
Ring Zinc diecast (ZnAl4Cu1)
Flange Metal
Umwelt
Zulassungen UL
Entflammbarkeit UL 94 V-0
Normenkompatibilität IEC 61076-2-103
Schutzklasse IP 40
Lötbarkeit Complies with IEC 68-2-20
Temperaturbereich -30 °C to +80 °C

Zubehör

B-SCREW
B-SCREW-1-8
dummyPLUG Case
CAS-DUMMY
NDF
NDF
SCF
