neutrik > Produkte > NC3FAAV2-0

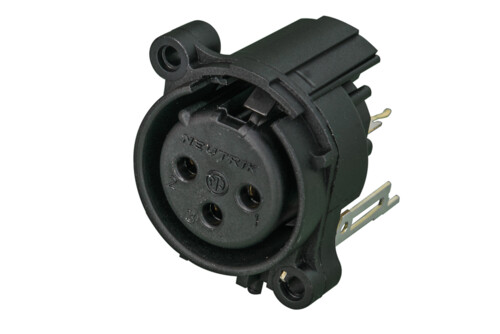

NC3FAAV2-0

NC3FAAV2-0

3 polige Chassisbuchse, Erdung: Separater Erdungskontakt mit dem Gehäuse des Gegensteckers und Front Panel, vertikale Leiterplattenmontage, Rückhaltefeder anstatt Verriegelung

Günstigste XLR Chassis Serie im runden Plastikgehäuse zur Panelmontage. Frontplattenauschnitt und Leiterplatten Layout sind zu 100% mit der A Serie kompatibel. "Tulpenkontakt" mit hohem Kontaktdruck für höchste Beständigkeit. Entflammbarkeit UL94 HB. UL recognized component.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Günstigste XLR Chassis Serie
  • "Tulpenkontakt" mit hohem Kontaktdruck für höchste Beständigkeit
  • Kontakte und PCB Anschlüsse teilweise mit Gold beschichtet für beste Leitfähigkeit und Lötbarkeit

Downloads

  • Strichzeichnung NC3FAAV2-0
  • Strichzeichnung NC3FAAV2-0
  • Produkt Katalog - Kapitel XLR

Links

  • UL Certificate (ECBT2.E135070)

Technische Informationen

Produkte
Titel NC3FAAV2-0
Verbindungstyp XLR
Geschlecht female
Elektrisch
Kapazität zwischen Kontakten ≤ 4 pF
Durchgangswiderstand ≤ 6 mΩ
Durchschlagsfestigkeit 1,5 kVdc
Isolationswiderstand > 10 GΩ (initial)
Nennstrom pro Kontakt 6 A
Nennspannung < 50 V
Erdungsoptionen Separate ground contact connected to mating connector shell and front panel, no connection to Pin 1
Mechanische Daten
Einsteckkraft ≤ 20 N
Aussteckkraft ≤ 20 N
Lebensdauer > 1000 mating cycles
Anschlussart vertical PCB mount
Verriegelung Retention spring
Einbaurichtung Rear mounting
Gehäuseform A
Mounting A-Screw
Material
Kontakte Bronze (CuSn6)
Verriegelungselement Steel Ck67
Gehäuse Polyamide (PA 6.6 30 % GR)
Umwelt
Zulassungen UL
Entflammbarkeit UL 94 HB
Normenkompatibilität IEC 61076-2-103
Schutzklasse IP 40
Lötbarkeit Complies with IEC 68-2-20
Temperaturbereich -30 °C to +80 °C

Zubehör

A-SCREW
A-SCREW-1-8
dummyPLUG Case
CAS-DUMMY
NDF
NDF
SCF
SCF
SFAV
SFAV
