opticalCON HYBRID MED Einbausteckverbinder

Female Einbausteckverbinder mit widerstandsfähiger antikorrosiver Beschichtung, 2 Crimp-Kontakte, 1x MPO-Durchgangsbuchse und 1x GND-Kontakt für den Kabelschirm am Gehäuse.

Die Einbauversion fungiert als Durchgangsadapter fur eine leichte Installation – rückseitig kann ein MPO-Patch-Kabel angeschlossen werden kann. Der Frontplattenausschnitt entpricht Neutrik's bewährter D-Form, so dass eine einfache Integration in bestehende Systeme möglich ist.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • Als OEM-Equipment vorgesehener Einbausteckverbinder in gängiger D-Form-Bauweise
  • Verbesserte Führungsnase für sichere und korrekte Verbindung
  • Robuster Hybrid-Durchgangsadapter
    - MPO-Ausschnitt für Patch-Kabel
    - 2 Power-Kontakte
    - 1 GND-Konakt
  • Entwickelt als Durchgangsadapter für einfachen Service und Austausch
  • Geschirmtes System mit EMV-Schutz
  • Geeignet für medizinische Anwendungen, z. B. im OP-Saal (indoor)

Downloads

  • Drawing NO16FD-XP (DXF)
  • 3D Drawing NO16fd-XP (STP)
  • 2D Drawing NO16FD-XP (PDF)
  • Cleaning Instruction - opticalCON HYBRID MED
  • Assembly Instruction - opticalCON HYBRID MED Contact Crimping
  • Produktbroschüre opticalCON HYBRID MED
  • opticalCON HYBRID MED Anwendung
  • Technical Paper - opticalCON HYBRID MED

Technical Information

Produkte
Title NO16FD-XP
Gender Female
Elektrisch
Contact resistance < 7 mΩ
Insulation resistance > 10 GΩ (initial)
Mains 12V AC / 10A / @50 Hz
Mechanische Daten
Insertion force < 45 N
Withdrawal force < 45 N
Lifetime (typ.) 10'000 mating cycles
Locking force 900 N
Locking device Push/Pull
Mounting direction Front mounting
Wiresize (power) Max. 16 AWG
Material
Contacts Brass
Insert Polyetherimide and Polycarbonate (PEI+PC)
Shell Zinc diecast and Polyoxmethylen
Shell plating Nickel
Umwelt
Flammability UL94 V-0
Temperature range -40°C to +75°C

Zugehörige Produkte

hybrid_med_connector
opticalCON HYBRID MED LWL-Kabel
hybrid_med_breakoutcable

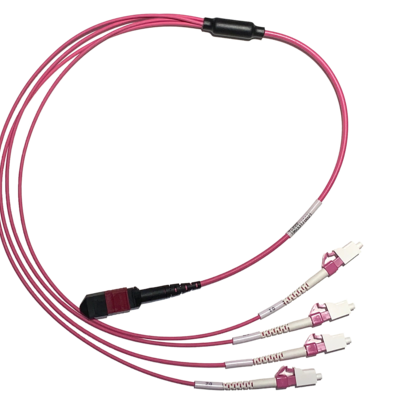

opticalCON HYBRID MED Breakout-Kabel
