neutrik > Produkte > etherCON RJ45 Steckverbinder > etherCON Einbaubuchsen > etherCON TOP Serie > NE8FDP-B-TOP

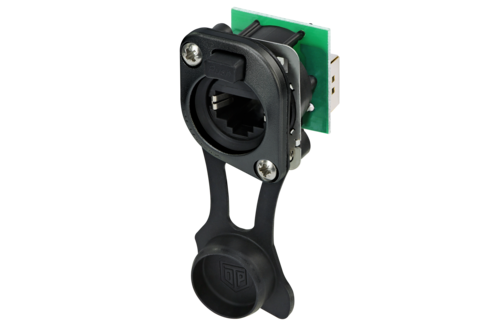

NE8FDP-B-TOP_open

NE8FDP-B-TOP

RJ45 feedthrough receptacle, combined with sealing kit SE8FD-TOP, D-shape metal flange with the latch lock, mounting screws included.

The etherCON series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications with IP65 rating. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

ATTENTION: Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Datenblatt Download
Auswahl Themen
Features & Benefits Downloads Technische Informationen Zubehör
Datenblatt Download

Features & Benefits

  • IP65 rated (in combination with etherCON TOP Connector or sealing cap closed)
  • Uses high impact UV-resistant and gasket materials
  • Useable with any standard RJ45 plug
  • Class D or CAT5e according to ISO/IEC 11801 and TIA/EIA
  • Approved latch lock system
  • Ground panel connection
  • Mountable from the front of the panel

Downloads

  • Drawing NE8FDP-B-TOP (PDF)
  • Drawing NE8FDP-B-TOP (DXF)
  • BDA 664 V1 - etherCON TOP - NE8FDV-B-TOP and NE8FDP-B-TOP

Technical Information

Produkte
Title  NE8FDP-B-TOP
Type  Chassis
Connection type  etherCON
Gender female
Elektrisch
Contact resistance  < 50 mΩ
Dielectric strength 1 kVdc
Frequency range 1 – 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Rated voltage < 50 V
Transmission performance CAT 5e
Mechanische Daten
Insertion force  ≤ 20 N 
Withdrawal force  ≤ 20 N 
Lifetime  > 1000 mating cycles 
Panel thickness 2 mm – 4 mm , 0.08” – 0.16”
Wiring Feedthrough
Locking device Latch lock
Chassis shape D
Material
Contact plating 0.2 µm Gold (Au) over Nickel (Ni) plating
Contacts Bronze (CuSn8)
Flange Zinc diecast (ZnAl4Cu1)
Flange plating  Black chromium
Umwelt
Flammability acc. to UL 94 V-0
Standard compliance TIA/EIA 586B, IEC11801
Protection class IP65 (mated) 
Temperature range  -30 °C to +80 °C

Accessories

SCCD-W
SCCD-W
SE8FD-TOP - Rubber sealing view 1
SE8F-TOP
