NC4MDM3-H-BAG-1
neutrik / Produkte / NC4MDM3-H-BAG-1

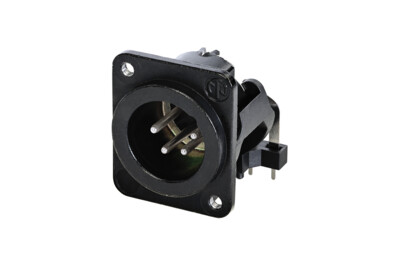

NC4MDM3-H-BAG-1

Datenblatt Download

4 poliger Chassisstecker, horizontale Leiterplattenmontage, schwarz verchromtes Gehäuse, silber beschichtete Kontakte, M3 Gewinde

Kompaktes Metallgehäuse mit integriertem Massekontakt, der eine exzellente Schirmung und einen ausgezeichneten Schutz gegen HF Störungen bietet.

Der Einsatz lässt sich NICHT aus dem Gehäuse entfernen.

Features & Benefits
  • Metallgehäuse bietet beste Rundumschirmung gegen hochfrequente und elektromagnetische Störungen
  • Duplex Massekontakt für beste Kontaktintegrität zwischen Einbaubuchse und Kabelstecker
  • Einbaustecker mit robustem Metallverriegelungsfenster
  • Massekontakt kann einfach mit Pin 1 verbunden werden
  • Installationskompatibilität durch Standard D Gehäuse
  • Der Einsatz lässt sich NICHT aus dem Gehäuse nehmen.
  • Leiterplattenmontage
Downloads
st-nc4mdm3-h-1
dxf - 406.37 KB
st-nc4mdm3-h-1
pdf - 63.01 KB
nc4mdm3-h-1
stp - 2.11 MB

Technische Informationen

Produkte
Title NC4MDM3-H-BAG-1
Connection Type XLR
Gender male
Elektrisch
Capacitance between contacts ≤ 7 pF
Contact resistance ≤ 5 mΩ
Dielectric strength 1.5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 10 A
Rated voltage < 50 V
Mechanische Daten
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiring Horizontal PCB mount
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape D
Mounting Mounting holes with M3 threads
Material
Contact plating Ag
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Steel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Umwelt
Flammability UL 94 V0
Temperature range -30 °C to +80 °C
