NC4FX-TOP

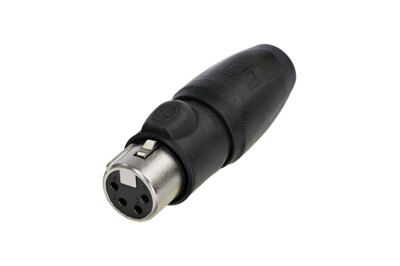

4-poliger Kabelstecker, TRUE OUTDOOR PROTECTION (TOP), vergoldete Kontakte.
Geschützt nach IP65 für Aussenanwendungen in gestecktem zustand mit entsprechendem Gegenstecker/Buchse der XLR-TOP Serie.
Features & Benefits
- Abgedichteter XLR-Stecker für den Einsatz in rauen Umgebungen mit höchsten Anforderungen.
- Schutzklasse IP65
- Schlagfestes UV-beständiges Material
- IEC 61984 zertifiziert
Downloads
Technical Information
| Produkte | |
|---|---|
| Title | NC4FX-TOP |
| Connection Type | XLR |
| Gender | Female |
| Elektrisch | |
|---|---|
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 10 A |
| Rated voltage | 50 V |
| Mechanische Daten | |
|---|---|
| Cable O.D. | 5.0 – 8.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | < 2.5mm² |
| 16 AWG | |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Bushing | UV-resistant rubber |
| Contact plating | Gold (Au) over Nickel (Ni) |
| Contacts | Brass |
| Insert | Polyamide |
| Locking element | St3K32 (latch) / Ck 67 (spring) |
| Shell | Zinc diecast |
| Shell plating | Nickel |
| Strain relief | Polyacetal |
| Sealing jacket | UV-resistant rubber |
| Umwelt | |
|---|---|
| Flammability acc. to UL94 | V-0 (insert) |
| Standard compliance | IEC 61076-2-103 |
| Protection class acc. IEC 60529 | IP65 (mated) |
| Solderability acc. to | IEC 60068-2-20 |
| Temperature range | -30 °C to +80 °C |
| Pollution degree acc. to IEC 60664-1 | II |
