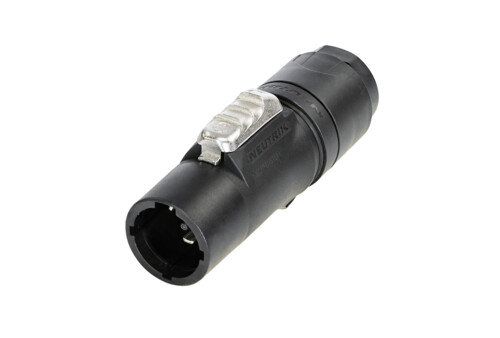

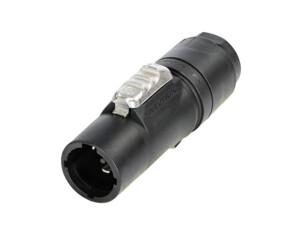

NAC3MX-W-TOP-L

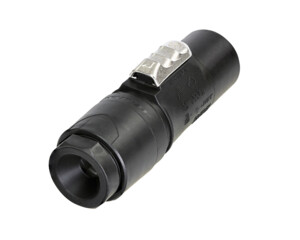

NAC3MX-W-TOP-L_rear_view

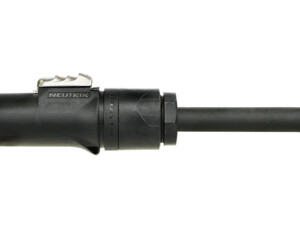

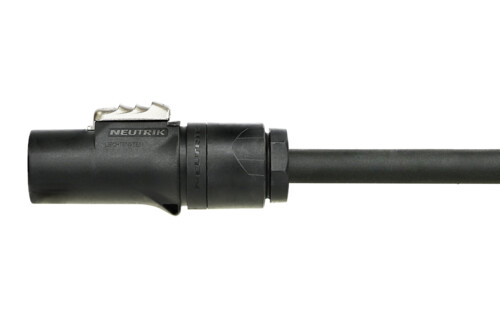

NAC3MX-W-TOP-L_Side_view_with_Cable_H07RN-F

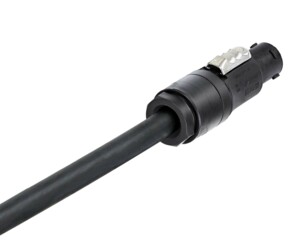

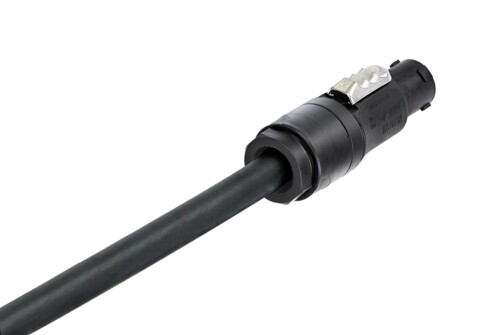

NAC3FX-W-TOP-L_Rear_with_Cable_H07RN-F

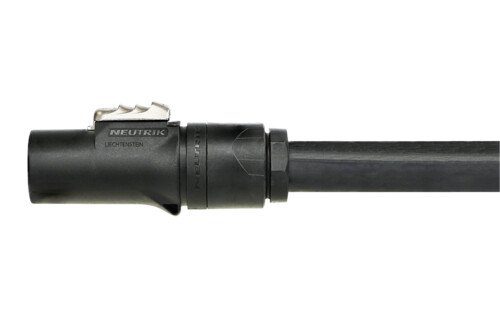

NAC3MX-W-TOP-L_Side_view_with_Cable_SOOW

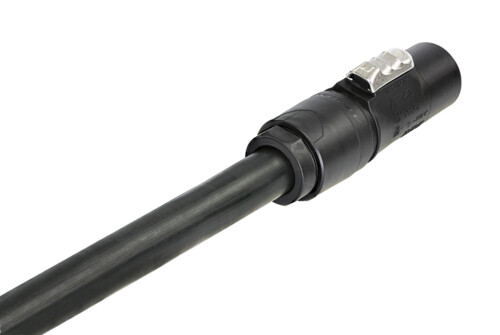

NAC3MX-W-TOP-L_Rear_with_Cable_SOOW
1/6
neutrik / Produkte / powerCON® / powerCON® TRUE1 / NAC3MX-W-TOP-L

NAC3MX-W-TOP-L

Datenblatt Download

PHASE OUT
direct replacement / successor: NAC3M-TRUE1-L



Verriegelbarer Kabelstecker für dicke Netzkabel mit Durchmessern von 10–16 mm. Zertifiziert nach EN/UL 60320-1 für den Gebrauch mit den Kabeltypen H07RN-F3G2.5 und SOOW 12/3 (USA). Schutzart IP65 und Strombelastbarkeit bis 16 A.

Die powerCON TRUE1 TOP Serie ist eine Steckvorrichtung für Außenanwendungen und darf unter Last und Spannung ein- und ausgesteckt werden.



Features & Benefits
  • Kabelaußendurchmesser 10 bis 16 mm
  • Normkonform IEC EN 60320-1 und UL 60320-1; d. h. anerkannte Komponente für Kabelsets IEC 60799 und Geräte nach IEC 62368-1
  • Speziell abgedichtete Netzsteckvorrichtung für
    hohe Beanspruchung in rauer Umgebung
  • TOP True Outdoor Protection
  • Einphasig, unter Last steckbar (20 A 250 VAC)
  • Extrem robuste und zuverlässige Zugentlastung
  • Superior NEUTRIK Qualitätsstandard
Downloads
NAC3MX-W-TOP-L
stp - 24.95 MB
NAC3MX-W-TOP-L
pdf - 736.22 KB
nac3mx-w-top-l
dxf - 3.2 MB
BDA 625 V5 - powerCON Cable Connector Male NAC3MX-W-TOP-L
pdf - 4.85 MB
Application Note TRUE1-TOP-L V2 20220128
pdf - 102.47 KB
Certificate UL E343813 (2023-01-03)
pdf - 202.49 KB
Neutrik TOP Products - NF23 V07 202111
pdf - 5.03 MB
VDE Certificate ENEC10VDE NAC3MX-W-TOP NAC3MX-W-TOP-L
pdf - 310.92 KB
Produkte
Artikelnummer NAC3MX-W-TOP-L
Serie powerCON TRUE1 TOP
Elektrisch
Durchschlagsfestigkeit 2,8 kV AC
Isolationswiderstand > 0,1 GΩ
Anzahl elektrischer Kontakte 2 + PE
Nennspannung IEC EN 60320-1: 16 A 250 V AC
zertiziert mit Kabeltyp H07RN-F3G2.5
Mechanische Daten
Kabelaußendurchmesser 10 bis 16 mm
Lebensdauer ca. 5.000 Steckzyklen
Leiterquerschnitt 2,5 mm²
12 AWG
Material
Konatktbeschichtung Ag
Umwelt
Temperatur –30 bis +80 °C
Entflammbarkeit UL94V-0
Schutzart IP65
UV-Beständigkeit UV-beständiges F1-Material
Zubehör
HTLACA View 2.png
HTLACA

Handwerkzeug zum Festziehen der Buchse der powerCON TRUE1 TOP, FXX und speakON FXX Serie.

HTLACB

Hand tool for tightening the bushing of the powerCON TRUE1 TOP, FXX and speakON FXX series

powerCON_SCM-TRUE1 TOP_persp front_RGB_WEB.png
SCM-TRUE1-01

Robuste Schutzkappe (male) mit ergonomischem Design für powerCON TRUE1 TOP Kabelsteckern.

Dichtkappe_SCNAC-MX_persp front liegend_RGB_WEB.png
SCNAC-MX

The rubber sealing cover protects the powerCON TRUE1 TOP NAC3MX-W-TOP from dust and water according to protection class IP65.

Montage/Assemblierung

Features powerCON® TRUE1® TOP L

Product related questions and answers
Question Answer
Is the new cable entry patented? There is a patent application in process which is related to the cable entry section.
How are the certifications different to the current version NAC3*X-W-TOP? EN certification:
Both versions are certified according to EN 60320-1.
The new L-version however is certified for large cables as follows:
H07RN-F 3G 2,5 mm²
The old version is certified for cable types:
H07RN-F 3G 1,5 mm² and H05VV-F 3G 1,0 - 2,5 mm²
UL certification:
The new L-version is certified according to UL 60320-1 for cables SOOW 12/3 and SOOW 14/3. The old version is certified according to UL 498.
JET certification:
Both versions are JET certified.
What are the mechanical differences to the current version NAC3*X-W-TOP? The whole cable entry section had to be redesigned in order to:
- To cover the large cable range (10 - 16mm)
- To meet the standards requirement to prevent disassembling by hand
- To improve the assembly process
The housing and insert parts are the same
When is the IEC 60799 relevant? This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections.
Why is the bushing loose in one direction? This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required.
