NAC3MPXXB-WOT
neutrik / Produkte / NAC3MPXXB-WOT

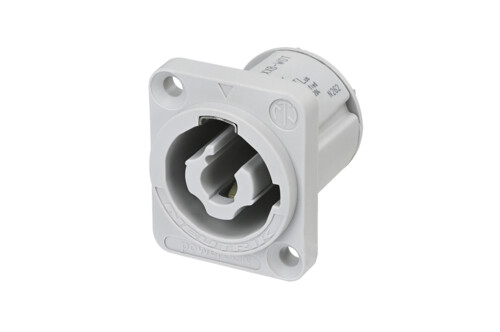

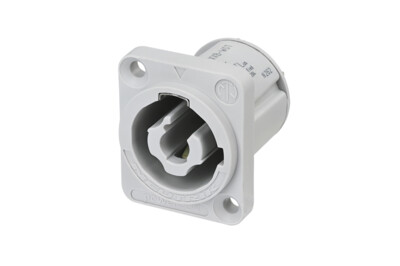

NAC3MPXXB-WOT

Datenblatt Download

Appliance outlet connector, 3/16" flat tab terminals, grey, without insulation divider for PCB mounting only. If nothing mounting on a PCB choose NAC3MPXXB

The powerCON XX is a locking mains connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.

This connector is suitable to be used as part of fire enclosures according to IEC 62368-1

This appliance coupler fulfils the requirements of the IEC 60320-1 and of theUL 60320-1 with breaking capacity (CBC).

Appliance coupler have superior electrical endurance due to its CBC design according to the IEC 60320-1.
Appliance couplers NAC3MPXXA and NAC3MPXXB are designed to be engaged or disengaged in normal use when live or under load when using with connectors and plug connectors of the FXX Serie(s).

Features & Benefits
  • Lockable single phase connector
  • Certified according to IEC 60320-1 & UL 60320-1
    UL US 498 / UL CA 498
  • Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
  • Extremely robust and reliable
  • UL94 V-0 materials
  • Drop-in replacement for NAC3MXXB-WOT; mates to NAC3FXXB cable connectors
  • 3 contacts for line, neutral and premating safety ground
  • Fast and easy twist lock latching system Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Suitable for fire enclosures according. to IEC 62368-1
Downloads
Assembly recommendation of powerCON chassis connector
pdf - 572.26 KB
st-nac3mpxxb-wot
pdf - 171.93 KB
st-nac3mpxxb-wot
dxf - 1.44 MB
NAC3MPXXB-WOT
stp - 3.66 MB
VDE CERTIFICATE powerCON XX grey series
pdf - 250.53 KB
Intertek Certificate UL-1977 and CANCSA-C22
pdf - 83.36 KB
Intertek Certificate UL 60320 and CANCSA 22
pdf - 88.87 KB
Certificate_UL_UL-CA-2544438-0 (2025-03-17)
pdf - 169.94 KB
Certificate_UL_UL-US-2438966-1 (2025-03-17)
pdf - 227.67 KB

Technische Informationen

Produkte
Artikelnummer NAC3MPXXB-WOT
Gender male
Elektrisch
Durchgangswiderstand ≤ 2 mΩ
Durchschlagsfestigkeit 4 kVdc / 2.8 kVac
Isolationswiderstand > 1 GΩ (after damp heat test IEC 68-2-30)
Anzahl elektrischer Kontakte 2 + PE
Nennspannung Europa EN 60320-1: 16 A 250 V AC
Rating USA / Canada cUL 60320-1: 20 A 127 V AC
UL USA 498: 20 A 250 V AC
UL CA 498: 20 A 250 V AC
UL 1977: 20 A 250 V AC
Mechanische Daten
Lebensdauer > 5000 Steckzyklen
Leiterquerschnitt 2,5 mm²
Wiresize 12 AWG
Material
Kontaktbeschichtung Ag
Verriegelung rostfreier Stahl
Gehäuse Polyamid (PA 6.6)
Kontakte Kupferlegierung
Umwelt
Entflammbarkeit UL 94 V-0
Temperaturbereich -30 °C to +80 °C
Lötbarkeit (für PCB) Complies with IEC 68-2-20
Accessories
powerCON_SCNAC-02_persp front_RGB_WEB.png
SCNAC-02

Dchtkappe aus Gummi, Größe D, für powerCON 20A Einbausteckverbinder NAC3MPXXB* und NAC3MPB-*
