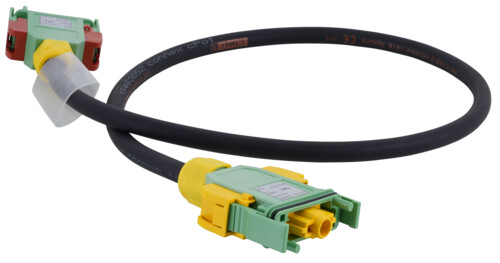

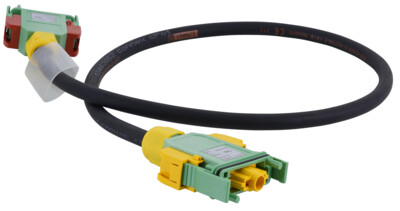

CP-X
CONNEX cPot anschlussfertige Kabel
Technical Information
| Produkte | |
|---|---|
| Description | CP-X* |
| Gender | CP-X*-* : Female – female CP-X*-R*-* : Adapter cables female / male – eyelet |
| Cable type | H07RN-F |
| Elektrisch | |
|---|---|
| Contactor resistance | 0,3 mΩ |
| Mechanische Daten | |
|---|---|
| Lifetime | > 500 Mating cycles per connector |
| Locking device | Latch lock |
| Conductor cross section | 16 mm² , 25 mm² |
| Material | |
|---|---|
| Cable Jacket Type | Rubber |
| Contact | 1 contact, copper alloy |
| Shell | Polycarbonat (PC) |
| Umwelt | |
|---|---|
| Standards compatibility | UL94-V0 (connector) |
| Protection class | IP65 in mated condition |
| Temperature range | -40 °C to 50 °C |
Ausführungen
| Artikelnummer | Beschreibung | Order name |
| CP-X16-001 | 1 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027356 |
| CP-X16-002 | 2 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027357 |
| CP-X16-005 | 5 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027358 |
| CP-X16-010 | 10 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027359 |
| CP-X16-015 | 15 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027360 |
| CP-X16-020 | 20 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027361 |
| CP-X16-025 | 25 m cPot [f] cPot [f] 16 mm² H07RN-F1X | 1027362 |
| CP-X25-010 | 10 m cPot [f] cPot [f] 25 mm² H07RN-F1X | 1027363 |
| CP-X25-025 | 25 m cPot [f] cPot [f] 25 mm² H07RN-F1X | 1027364 |
| CP-X25-050 | 50 m cPot [f] cPot [f] 25 mm² H07RN-F1X | 1027365 |
| CP-X25-R8M-00025 | 0,25 m eyelet M8 cPot [m] 25 mm² H07RN-F1X | 1027366 |
| CP-X25-R12M-00025 | 0,25 m eyelet M12 cPot [m] 25 mm² H07RN-F1X | 1027367 |
| CP-X25-R12F-00025 | 0,25 m eyelet M12 cPot [f] 25 mm² H07RN-F1X | 1027368 |
