CP-PM
CONNEX cPot Einbaustecker
Downloads
Technical Information
| Produkte | |
|---|---|
| Description | CP-PMx |
| Scope of delivery | CP-PMA: 1x panel housing male green, 1x insert male yellow, 1x axial contact 10-25mm² male, 13mm isolation of cable has to be removed |
| CP-PMB: Panel male PE terminal block 2x35/1x25 mm² | |
| CP-PM620: 1x panel housing male green, 1x insert male yellow, 1x contact male with M6 thread 20mm | |
| Elektrisch | |
|---|---|
| Contactor resistance | ≤0,3 mΩ |
| Mechanische Daten | |
|---|---|
| Lifetime | > 500 Mating cycles per connector |
| Locking device | Latch lock |
| Conductor cross section | 16 mm2 , 25 mm2 |
| Material | |
|---|---|
| Contact | 1 contact, copper alloy |
| Shell | Polycarbonat (PC) |
| Umwelt | |
|---|---|
| Standards compatibility | UL94-V0 (connector) |
| Protection class nach IEC 60529 | IP65 in mated condition |
| Temperature range | -40 °C – 55°C |
Ausführungen
| Artikel | Beschreibung | Bestellnr. |
| CP-PMA | Einbaustecker PE axial 10-25 mm² IP65 | 1027373 |

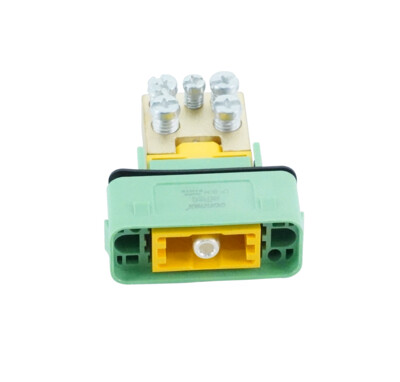

| CP-PMB | Einbaustecker PE terminal block 2x35/1x25 mm² IP65 | 1027374 |
| CP-PM620 | EInbaustcker PE M6x20 mm IP65 | 1027375 |
