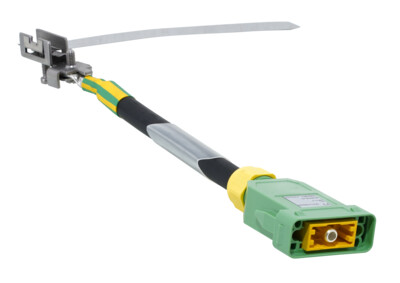

CP-BSAM
CONNEX cPot Bandschellenadapter PE
Technical Information
| Produkte | |
|---|---|
| Description | CP-BSAM |
| Elektrisch | |
|---|---|
| Contactor resistance | ≤0,3 mΩ |
| Mechanische Daten | |
|---|---|
| Lifetime | > 500 Mating cycles per cPot connector |
| Locking device | Latch lock |
| Conductor cross section | 16 mm2 , 25 mm2 |
| Material | |
|---|---|
| Contact | Contact |
| Shell | Polycarbonat (PC) |
| Umwelt | |
|---|---|
| Standards compatibility | UL94-V0 (connector) |
| Protection class nach IEC 60529 | IP65 |
| Temperature range | -40 °C – 55°C |
Ausführungen
| Artikelbezeichnung | Details | Bestellnummer |
| CP-BSAM-50 | 0,25 m Bandschellenadapter PE cPot [m] IP65 25 mm² | 1027387 |
