27.01.2022

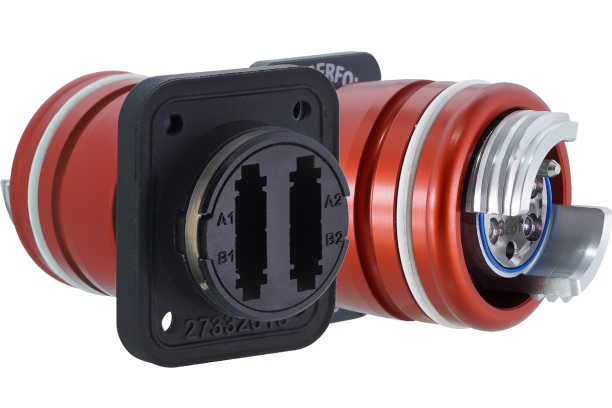

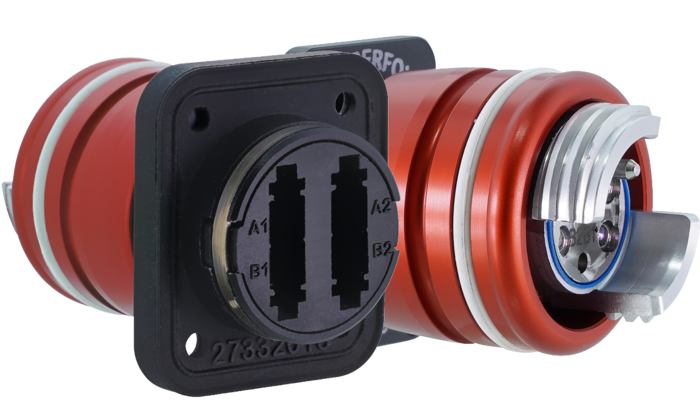

FIBERFOX briDge

FIBERFOX 27405001 hvs briDge.png


Neu im Programm der Neutrik Group ist die LWL-Serie FIBERFOX. Diese besteht aus LWL-Kabeln und Einbauversionen, die auf der berührungslosen und äußerst verschmutzungsunempfindlichen »Expanded Beam« Linsen-Technologie beruhen und auch ohne Schutzkappe die Schutzart IP 68 erreichen. Damit ist FIBERFOX auch für industrielle Anwendungen bestens geeignet.

Die »briDge«-Einbauversionen als zwei oder vierkanalige Durchgangsadapter bieten als Besonderheit rückseitig LC-Anschlüsse, so dass eine Adaptierung von den frontseitigen Linsensteckern auf »Physical Contact« ohne zusätzliche Konfektionierung möglich ist. Bei Bedarf können die weit verbreiteten und anschlussfertigen LC-Patchkabel problemlos ohne Werkzeug gewechselt werden. Frontseitig ist die briDge neben den FIBERFOX-Kabelsteckverbindern auch mit allen MIL-DTL-83526 Kabelsteckern kompatibel. Der Einbau erfolgt über einen standardisierten D-Flansch und ist ohne Spezialwerkzeug möglich.


Produktdetails

Zweikanalige FIBERFOX 2CH briDge

Vierkanalige FIBERFOX 4CH briDge
