Power Bar X CPBX-T1-T3
COMING SOON!

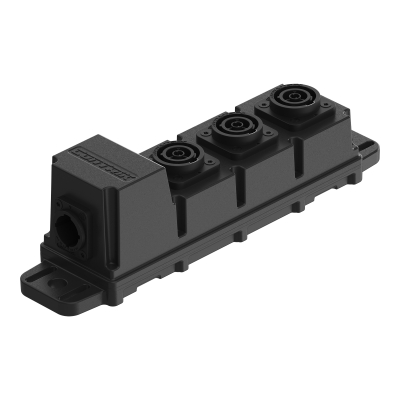

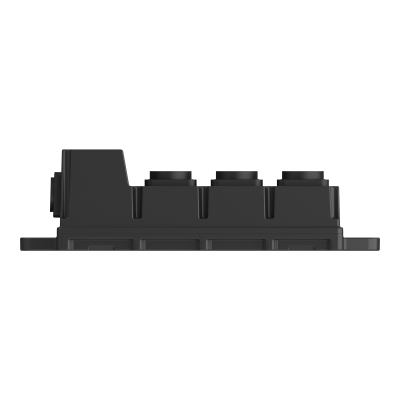

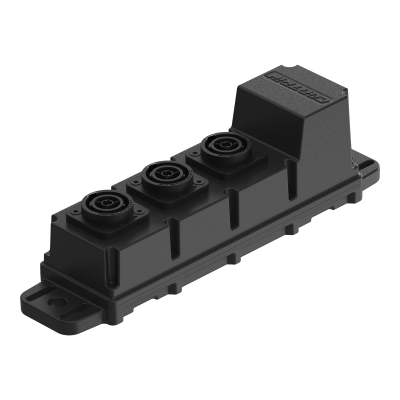

Power Bar Xtreme. 1x powerCON TRUE1 IN – 3x powerCON® TRUE1® TOP OUT
The Power Bar is an ultra-compact powerCON TRUE1 distribution box designed for professionals. Its innovative injection-molded housing offers exceptional mechanical protection, combined with high cost-efficiency. With a rugged, space-saving design, it is the ideal solution for demanding, harsh environments. 1x powerCON® TRUE1® TOP In and 3x powerCON® TRUE1® TOP Out.
Features & Benefits
- Ultra-compact injection-molded power distribution box for
harsh applications - High durability and safety: Impact-resistant (high IK rating), non-conductive, flame-retardant polymer housing (V0), UV-resistant material (UL 746C F1 certified), high temperature resistance, high impact strength
- Flexible mounting options: powerBAR truss clips, screw and Velcro strap mounting holes
- Attractive pricing
Market & Applications
- Markets: Professional video wall / lighting / audio
- Mobile application: Festivals, live events
- Semi-permanent applications: Theaters, studios
Downloads
Technical Information
| Produkte | |
|---|---|
| Input device | 1x powerCON® TRUE1® TOP |
| Output device | 3x powerCON® TRUE1® TOP |
| Elektrisch | |
|---|---|
| Contact resistance / protection class | Protection class II |
| Dielectric strength | 0.5 kV / mm |
| Rated voltage | 250V AC |
| Rated Current | 16A |
| Number of electrical contacts | 2 + PE |
| Phases | single-phase |
| Mechanische Daten | |
|---|---|
| Lifetime | > 5000 Mating cycles per connector |
| Mechanical impact resistance | IK10 |
| Dimensions | 245 x 60 x 69 mm |
| Conductor cross section | 2.5 mm² |
| Weight | 0.65 kg |
| Mounting options | Truss clip and mounting holes for securing or suspending with screws or Velcro |
| Material | |
|---|---|
| Housing | Polymer composite |
| Color | black |
| Umwelt | |
|---|---|
| Standards compatibility | UL94-V0 |
| Protection class | IP20 |
| Temperature range | -25 °C bis +70°C |
Accessories
power
powerCON TRUE1 - Schuko cordset rewirable
NEUTRIK® Cables with CEE Mains Plug to powerCON®
video
powerCON TRUE1 - Interconnection cordset rewirable
NEUTRIK® Outdoor-Netzkabel mit powerCON® TRUE1® und hochwertigem H07RN-Kabel. Ideal für Bühne und Events.

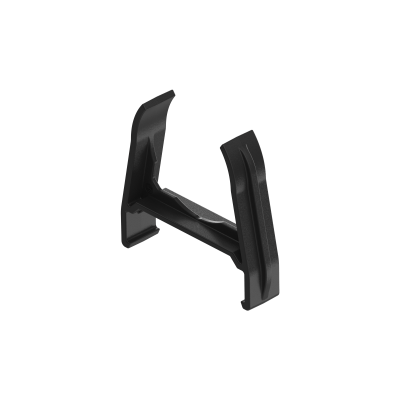

Power Bar Truss Clip CCL60-P2
Trussclip set 60 mm for pipe 48 mm / 1½". For Power Bar (CPB*)
powerCON TRUE1 - Interconnection cordset rewirable (U.S.)
Article Variations
| Article name | Details | Order code |
| CPBX-T1-T3 | IN: 1 x powerCON® TRUE1® TOP - OUT: 3 x powerCON® TRUE1® TOP | 1039590 |
