opticalCON POWERSPLIT

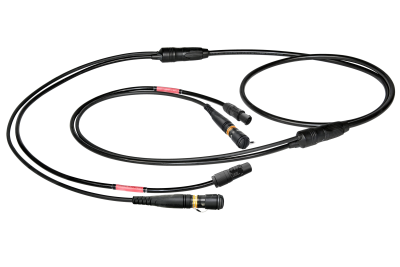

Rugged hybrid multi-channel cable assembly consisting of power wires (240V AC / 16A / 2.5mm2) and fiber lines (up to 12 channels). Perfect solution for harsh environments and mobile applications requiring both AC power and multiple fiber strands. Optimized for ENG/SNG.
- Multi-channel solution based on the opticalCON and powerCON TRUE1 connectors
- Perfect solution for applications where high volume of cabling is required. Optimized for point-to-point multi-channel routing and ENG/SNG applications
- One hybrid cable can replace up to 7 standard cables, reducing spooling efforts, weight and space requirements
- POWERSPLIT hybrid multi-channel cable consists of power wires (240V AC / 16A / 2.5mm2) and multi-channel fiber lines (up to 12 channels)
- Ideal for harsh outdoor environments and mobile applications due to innovative rugged design of powerCON TRUE1 and opticalCON ADVANCED DUO/QUAD/MTP connectors
- Extremely long lifetime (up to 5000 mating cycles)
- Lockable powerCON / opticalCON connectors ensure safe and uninterrupted power and data transmission
- Complete solution is IP65 protected in mated condition
- Innovative opticalCON spherical shutter protects fiber connection from dust even in unmated conditions and reduces required maintenance
Technische Informationen
| Product | |
|---|---|
| Product | POWERSPLIT 2.5mm² |
| Mechanical | |
|---|---|
| Cable retention | 400 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime | opticalCON DUO/ QUAD >5000, МТР >2500 |
| Locking device | Push-Pull |
| Material | |
|---|---|
| Boot | Rubber (EPDM) |
| Bushing | Zinc diecast (ZnA|4Cu1) |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnA|4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Brass (CuZn39Pb3) + PU, Ni |
| Environmental | |
|---|---|
| Temperature range | -30 °C to + 75°C |
| Optical | |
|---|---|
| Insertion loss | opticalCON DUO / QUAD <0.45 dB MTP < 0.9 dB |
| Mobile cable | |
|---|---|
| Colour | black, matte |
| Core diameter | Singlemode 9 µm (G.657A) Multimode 50 µm (OM3) |
| Cladding diameter | 125 µm |
| Minimal bending radius | 26.4 cm |
| Number of fibers | 12 |
| Weight | 220 kg/km |
| Cable diameter | 13.2 mm |
The opticalCON DUO/QUAD/MTP cable connector accommodates up to 12 PC/APC optical channels based on conventional and proven LC/MTP connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover. The cable is available in different lengths and is packed either on a drum or air spooled.
The powerCON TRUE1 is a locking 16A rms (USA: 20A) true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
ATTENTION: The powerCON TRUE1 is a connector with IP65 rating and breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Cable cross section 2.5mm2

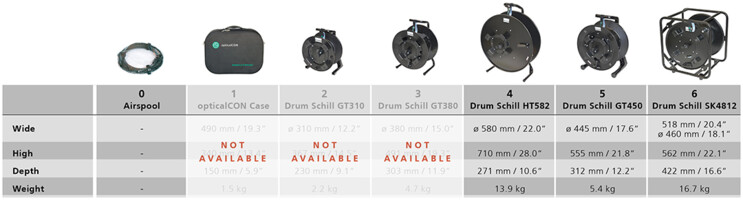

Packaging options and max. cable length
opticalCON Features
