NSSC-2
Sealing self-closing cap FPX for powerCON receptacle
The spring-loaded sealing self-closing cap NSSC-2 for powerCON receptacles shuts automatically after unplugging the cable connector and seals the chassis connectors against dust and water to IP65.
Suitable for:

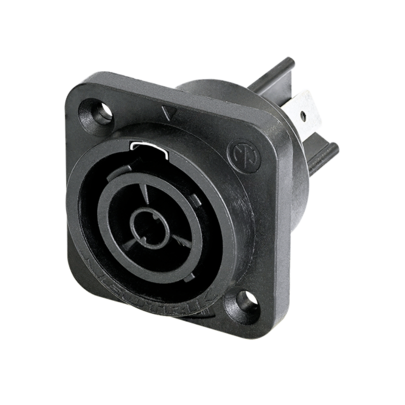

- NAC3FPX-TOP

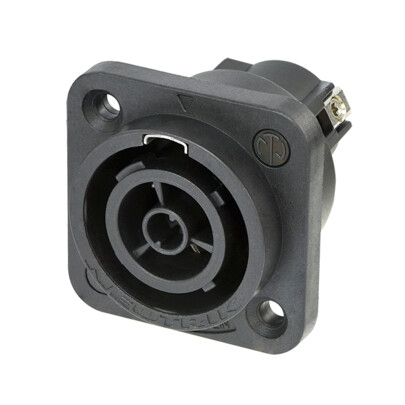

- NAC3FPX-ST-TOP

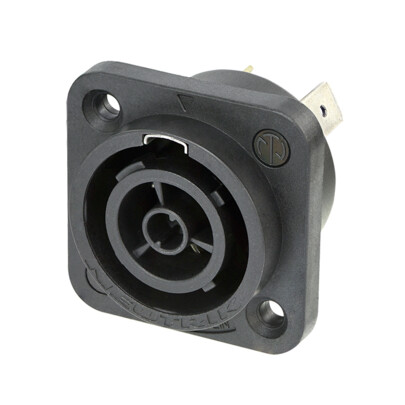

- NAC3FPX-WOT-TOP
Downloads
Technical Information
| Product | |
|---|---|
| Title | NSSC-2 |
| Material | |
|---|---|
| Hard component | Polyamide (PA 66) |
| Soft component | EPTR |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Flammability | UL 94 V-0 |
| Protection class | IP65 |
