MTP® Patch Cable
High performance MTP® patch cable to connect the rear side of the opticalCON MTP® chassis connectors. Elite®male ferrules guarantee low insertion loss and optimized optical return loss values.
Optical Con Login
To login
Optical Con Login
Features & Benefits
- USCONEC MTP Elite® Male connector
- Multifiber design reduces installation cost and time
- Small form factor
- Unique fiber design for high cable performance
- Individual lengths available
- Single and multimode
- Standard wiring method: A
- Optional wiring method B and C available upon request
Downloads
Technical Information
| Product | |
|---|---|
| Title | MTP® patch cable |
| Environmental | |
|---|---|
| Temperature range | -20 °C to +70 °C |
| Optical | |
|---|---|
| Insertion loss | Please see individual drawings (Downloads) |
| Optical connector | MTP® Male SM [APC] to MTP® Male SM [APC] MTP® Male MM [PC] to MTP® Male MM [PC] |
| Optical wiring | Method A |
| Mobile cable | |
|---|---|
| Outer diameter | MTP®12: 3,0mm (approx.) MTP®16: 3,5mm (approx.) MTP®24: 3,8mm (approx.) MTP®48: 4,8mm (approx.) |
| Jacket material | LSZH/OFNP/PVC |
| Core diameter | Multimode 50 µm Singlemode 9 µm |
| Cladding diameter | 125 µm |
| Number of fibers | 12, 16, 24, 48 |
Accessories
NO12FDW-A
The rear compatibility of opticalCON MTP® chassis fitting with standard MTP® (ELITE male) breakout cable allows easy adaptation to fiber standard connectors such as LC, SC, ST.
audio
NO16FDW-A
MTP® 16 chassis fitting with standard MTP® 16 (ELITE male with 20 N springforce) breakout cable
NO24FDW-A
opticalCON MTP® 24 chassis fitting with standard MTP® 24 (ELITE male with 20 N springforce) breakout cable

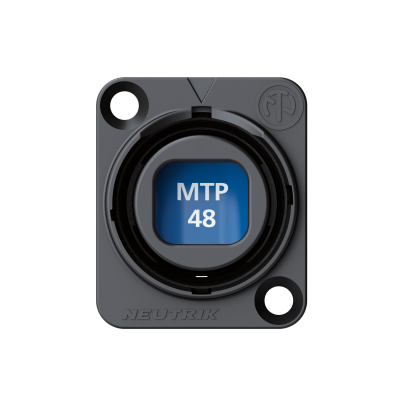

NO48FDW-A
MTP® 48 chassis fitting with standard MTP® 48 (ELITE male with 20 N springforce) breakout cable
CAS-FOCD-ADV
Fiber optic cleaning kit
audio
CAS-FOMD
Fiber Optic Measurement Devices
Ordering Information
| Product Code | Description | From connector | To connector | Fibertype |
| NKOP12M-A-0-* | MTP®12 patch cable MM | MTP®12 MM[PC] Male | MTP®12 MM[PC] Male | Multimode |
| NKOP12SA-A-0-* | MTP®12 patch cable SM | MTP®12 SM[APC] Male | MTP®12 SM[APC] Male | Singlemode |
| NKOP16SA-A-0-* | MTP®16 patch cable SM | MTP®16 SM[APC] Male | MTP®16 SM[APC] Male | Singlemode |
| NKOP24M-A-0-* | MTP®24 patch cable MM | MTP®24 MM[PC] Male | MTP®24 MM[PC] Male | Multimode |
| NKOP24SA-A-0-* | MTP®24 patch cable SM | MTP®24 SM[APC] Male | MTP®24 SM[APC] Male | Singlemode |
| NKOP48M-A-* | MTP®48 patch cable MM | MTP®48 MM[PC] Male | MTP®48 MM[PC] Male | Multimode |
