neutrik > Products > SR8A

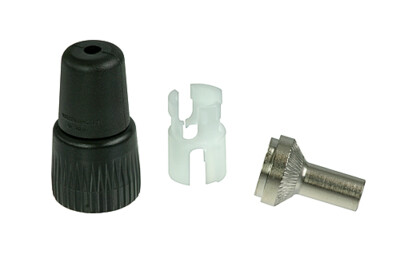

SR8A

SR8A

Crimp type strain relief for cable O.D. 3 - 3.8 mm

Special crimp type strain relief establishes an ideal circumferential connection of the cable shield to the connector shell as required by best EMC working practice.

Crimp standard: 5.41 mm / IEC 803

The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set, ...).

The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Contact configuration can be selected from 1 to 8 contacts
  • Easy assembly: Contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts.
  • Precise and robust all metal housing
  • Push-pull self-locking system
  • Coding system possible (polarization)


Downloads

  • Assembly Instruction - neutriCON
  • Produkt Katalog - Kapitel Rundsteckverbinder
  • Assembly Instruction - neutriCON Modular System
neutriCON Polarization

Modular System

neutriCON modular Info 201701 E

Technical Information

Product
Title SR8A
Connection Type neutriCON
Mechanical
Crimp size 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
Wiresize

Accessories

FI8
FI8
MI8
MI8
BS1
BS1
PS1
PS1
SC8
SC8
SC8-Ni
SC8-NI
SC81
SC81
SC81-Ni
SC81-NI
MC8
MC8
MC8-NI
MC8-NI
MC81
MC81
MC81-Ni
MC81-NI
BSP
BSP-*
