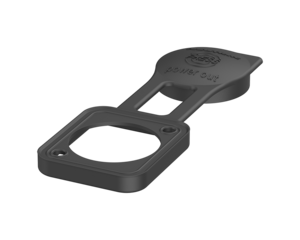

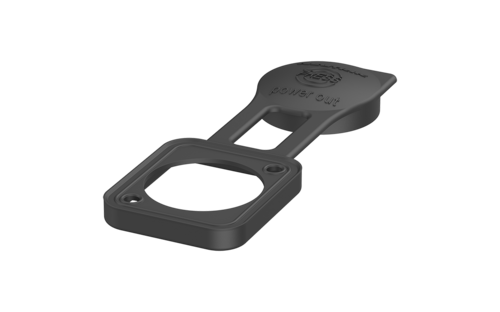

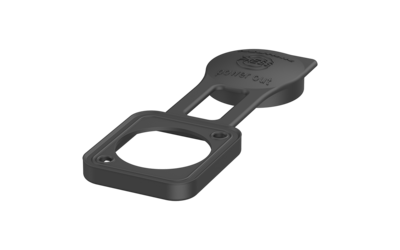

SCNAC-02

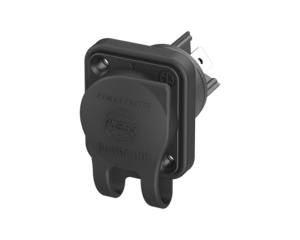

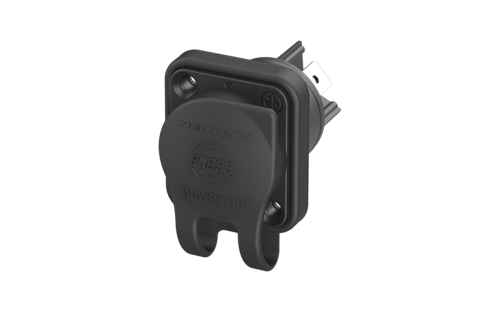

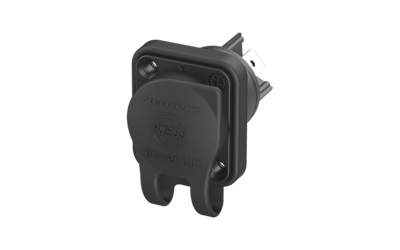

SCNAC-02 assembled

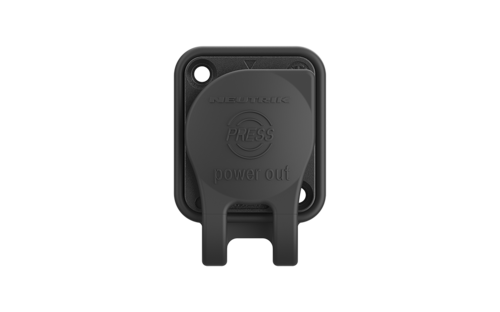

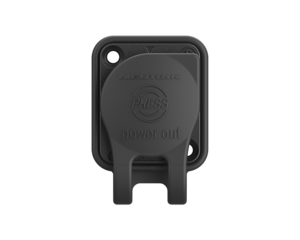

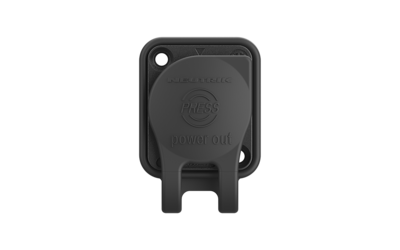

powerCON_SCNAC-02-sealing_front_RGB_WEB

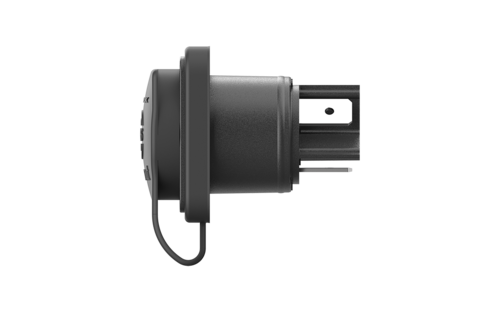

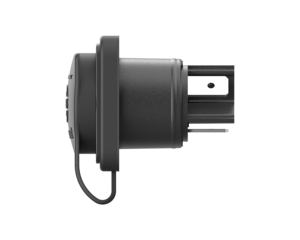

powerCON_SCNAC-02-sealing_side_RGB_WEB
1/4
neutrik / Products / powerCON® / powerCON® Accessories / SCNAC-02

SCNAC-02

Download Data Sheet

NEW: The D-size rubber sealing cover protects the powerCON 20A chassis connectors NAC3MPXXB* and NAC3MPB-* from dust and water according to protection class IP 65. User friendly and easy to assemble, its compact frame allows for high packing density.

Features & Benefits
  • IP 65 water and dust proof test passed for 15 mins with vacuum (-0.2bar) in closed condition, suitable for lighting industry
  • UV-resistant material for use in harsh outdoor environment
  • Allows high packaging density on the chassis
  • User friendly, easier to assemble
Downloads
SCNAC-02
pdf - 59.54 KB
SCNAC-02
dxf - 1.87 MB
BDA 643 V1 - Sealing Cover SCNAC-01 02 03 04
pdf - 1.75 MB

Technical Information

Product
Title SCNAC-02
Material
Material EPDM
Color Black
Marking Power out
Environmental
Flammability acc. to UL 94 HB
Protection class acc. to IEC 60529 IP 65
