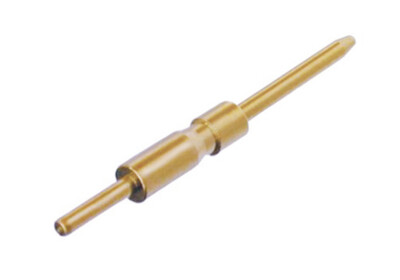

PP1
Male PCB contacts, gold plated, for chassis connectors
The modular system of the miniCON series offers the possibility to assemble a desired connector from a wide range of various parts. Including additional parts for special versions (e.g. cable connector extension, crimp set, ...).
The neutriCON connectors are designed for multipin/industrial applications in harsh and demanding environment. The very robust all metal circular connector offers easy and screwless assembly, flexible part combination and a push-pull locking mechanism.
- Contact configuration can be selected from 1 to 8 contacts
- Easy assembly: Contact soldering / crimping in disassembled condition avoids awkward wiring of high density contacts.
- Precise and robust all metal housing
- Push-pull self-locking system

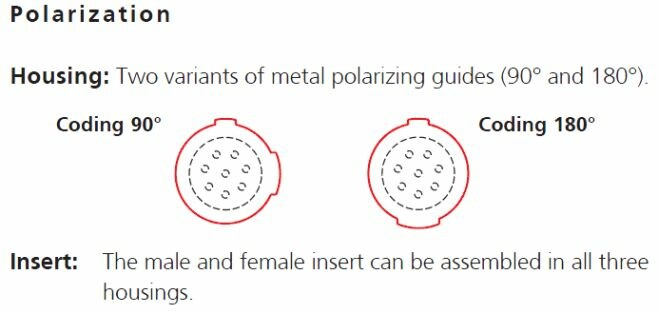

- Coding system possible (polarization)
Technical Information
| Product | |
|---|---|
| Title | PP1 |
| Connection Type | neutriCON |
| Gender | male |
| Mechanical | |
|---|---|
| Wiresize | |
| Wiring | PCB contact |
| Environmental | |
|---|---|
| Solderability | Complies with IEC 68-2-20 |

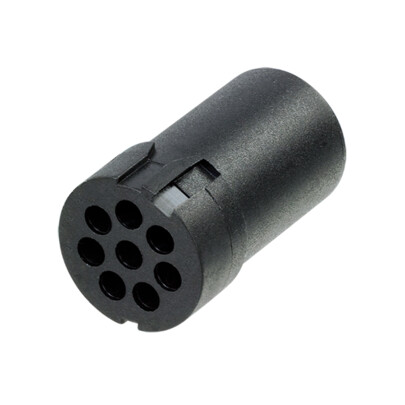

Male insert for cable and chassis connectors

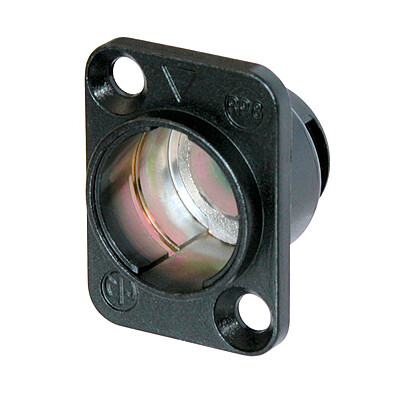

Chassis connector housing for female and male inserts, black coated, 180° coding

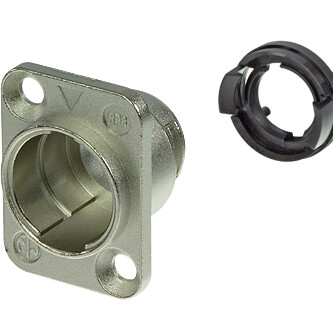

Chassis connector housing for female and male inserts, nickel coated, 180° coding

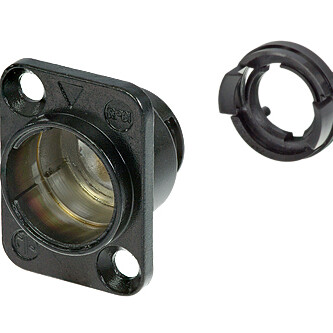

Chassis connector housing for female and male inserts, black coated, 90° coding

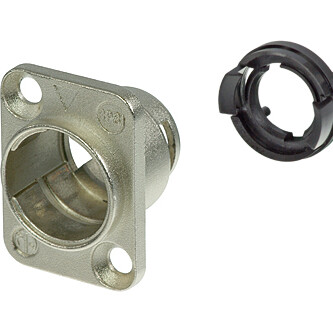

Chassis connector housing for female and male inserts, nickel coated, 90° coding

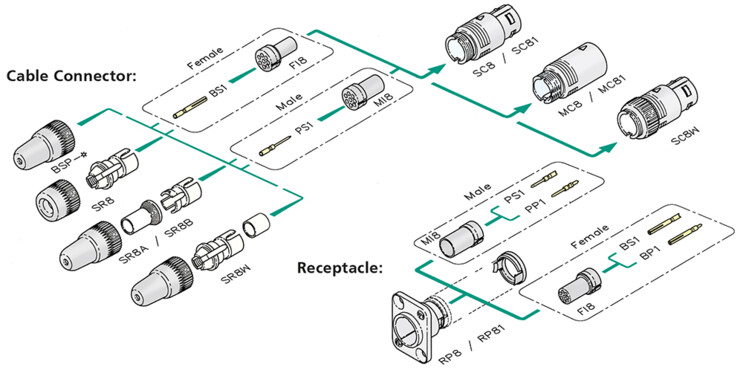

Modular System
