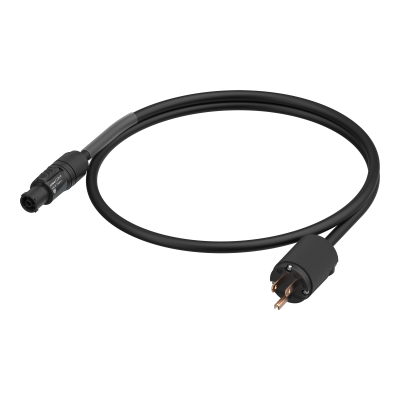

powerCON_cable-NAC3F-TRUE1-L-Stecker USA_persp front_RGB_WEB
neutrik / Products / powerCORDS / premium POWER CORDS / powerCON TRUE1 – NEMA 5-15 cordset rewirable (U.S.)

powerCON TRUE1 – NEMA 5-15 cordset rewirable (U.S.)

Download Data Sheet

NEUTRIK® cabels with re-wireable NEMA 5-15P plug to powerCON® TRUE1® and high-quality SJOOW or SJTOW cables. Ideally suited for stages and events.

Compliant with all relevant versions of IEC 60799.



Features & Benefits

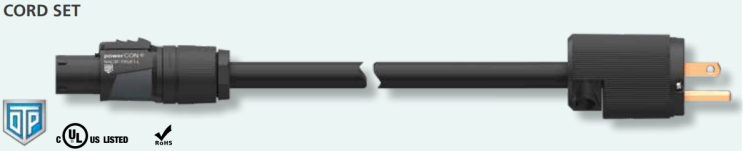

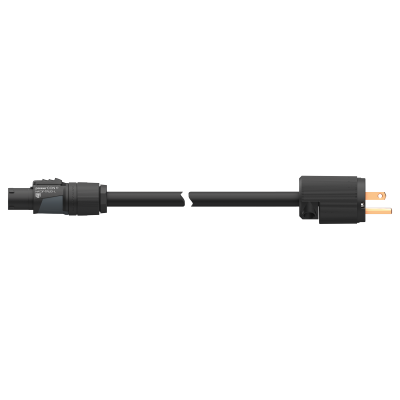

  • Cord sets with NEMA 5-15P to powerCON® TRUE1 female connectors
  • High-quality, rubber-insulated SJOOW cables (SJTOW cables available on request)
  • Available with AWG12 conductor cross section (AWG14 on request)
  • Fitted with powerCON® connectors (NAC3F-TRUE1*), tested according to UL498 and UL 60320-1
  • Ruggedized powerCON® connectors with Circuit Breaking Capacity (CBC)
  • High-quality NEMA 5-15P connectors
  • Rated IP20 for limited dust and water protection
  • Fully compliant with UL 817
Downloads
Drawing_NKPS-ABA1
pdf - 369.89 KB
Drawing_NKPS-ABA1
zip - 261.21 KB
BDA 737 V2 - Neutrik Manual EN - Neutrik powerCON TRUE1 Cabel- 20260130
pdf - 1.21 MB
25-125_NEUTRIK power cords premium series Broschure USA_TXT
pdf - 1.82 MB

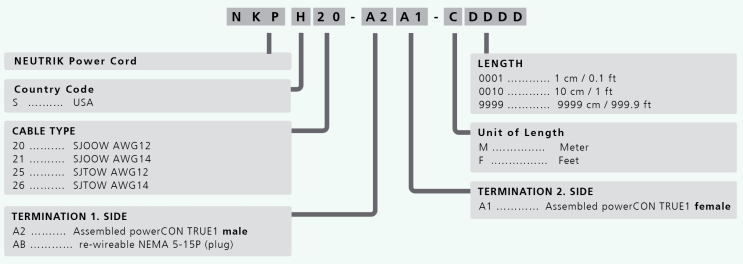

Article Varations
Article nameDetailsOrder code
NKPS20-ABA1-F00606 feet, SJOOW AWG12, NEMA 5-15P, powerCON® TRUE 1® TOP (f)1040696
NKPS20-ABA1-F010010 feet, SJOOW AWG12, NEMA 5-15P, powerCON® TRUE1® TOP (f) 1040697
NKPS20-ABA1-F025025 feet, SJOOW AWG12, NEMA 5-15P, powerCON® TRUE1® TOP (f)1040698

Type Descriptions


powerCON TRUE1 - NEMA 5-15 cordset rewirable

powercords USA re-wirable
