neutrik > Products > powerCON TRUE1 Power Cord
powerCON TRUE1 cable female

powerCON TRUE1 Power Cord

Ready-made overmolded power cord in protection class IP65. The cable utilizes standard duty cord with 3 conductors with cross section 1.5 mm2  or AWG 12.

The cables are equipped with overmolded Neutrik powerCON TRUE1 NAC3FX-W or NAC3MX-W. The other end is open for termination of local connectors. Overmolded local connectors on request. The cables are available in different lengths.

Download Data Sheet
Selection of topics
Downloads Technical Information
Download Data Sheet

Downloads

  • Product Guide - powerCON and Circular Connectors
  • Drawing NKPF-NC-*
  • Drawing NKPF-NC

Links

  • UL Certificate (ELBZ2.E343814)
  • cUL Certificate (ELBZ8.E343814)

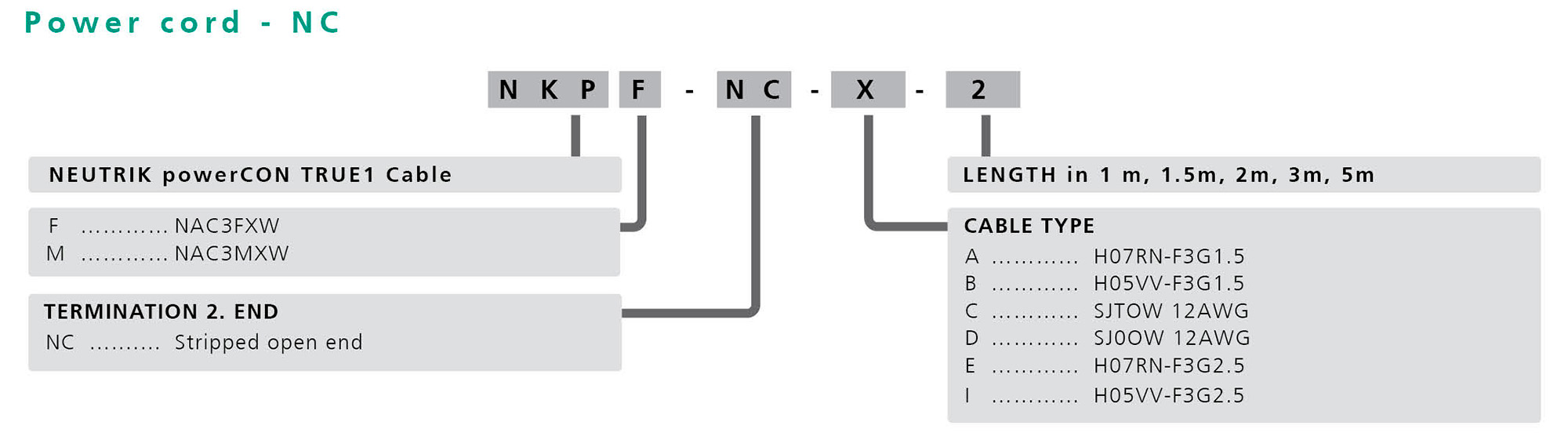

Cable Part Number Breakdown

powerCON TRUE1 Part Number Breakdown Power Cord

powerCON TRUE1

The powerCON TRUE1 is a locking waterproof 16 A (USA: 20 A) true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

powerCON TRUE1 Power Cable male

powerCON TRUE1 Power Cable male

Mating scenario powerCON TRUE 1 chassis connector NAC3FPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3FPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3MPX-W

Mating scenario powerCON TRUE 1 chassis connector NAC3PX

Mating scenario powerCON TRUE 1 chassis connector NAC3PX

powerCON TRUE1 Power Cord

powerCON TRUE1 Power Cord
