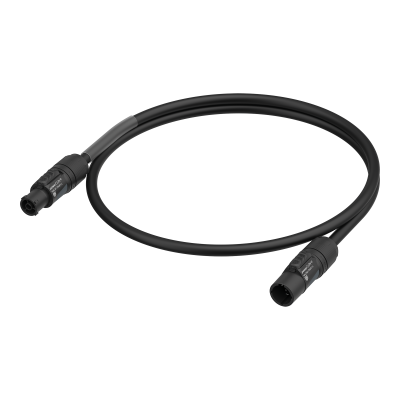

powerCON TRUE1 - Interconnection cordset rewirable (U.S.)

Download Data Sheet

NEUTRIK® outdoor cables with re-wirable powerCON® TRUE1® and high-quality SJOOW or or SJTOW cables. Ideally suited for stages and events.

Features & Benefits

Features & Benefits

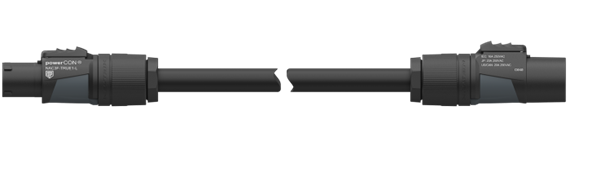

  • Interconnection cord sets with powerCON® TRUE1 male and female connectors
  • High-quality, rubber-insulated SJOOW cables (SJTOW cables available on request)
  • Available with AWG12 conductor cross section (AWG14 on request)
  • Equipped with powerCON® connectors (NAC3M-TRUE1* / NAC3F-TRUE1*), tested according to UL 498 and UL 60320-1
  • Features ruggedized powerCON® connectors with Circuit Breaking Capacity (CBC)
  • Rated IP65 for dust and water resistance
  • Fully compliant with UL 817
Downloads
Drawing_NKPS-A2A1
pdf - 504.88 KB
Drawing_NKPS-A2A1
zip - 352.77 KB
BDA 737 V2 - Neutrik Manual EN - Neutrik powerCON TRUE1 Cabel- 20260130
pdf - 1.21 MB
25-125_NEUTRIK power cords premium series Broschure USA_TXT
pdf - 1.82 MB
Article Varations
Article nameDetailsOrder code
NKPS20-A2A1-F00303 feet, SJOOW AWG12, powerCON® TRUE1® TOP (m), powerCON® TRUE1® TOP (f)1040691
NKPS20-A2A1-F00606 feet, SJOOW AWG12, powerCON® TRUE1® TOP (m), powerCON® TRUE1® TOP (f)1040692
NKPS20-A2A1-F010010 feet, SJOOW AWG12, powerCON® TRUE1® TOP (m), powerCON® TRUE1® TOP (f)1040693
NKPS20-A2A1-F015015 feet, SJOOW AWG12, powerCON® TRUE1® TOP (m), powerCON® TRUE1® TOP (f)1040694
NKPS20-A2A1-F025025 feet, SJOOW AWG12, powerCON® TRUE1® TOP (m), powerCON® TRUE1® TOP (f)1040695

Type Descriptions


powerCON TRUE1 - Interconnection cordset rewirable
