neutrik > Products > opticalCON QUAD MED > opticalCON QUAD MED Cable
opticalCON HYBRID MED Rendering Website

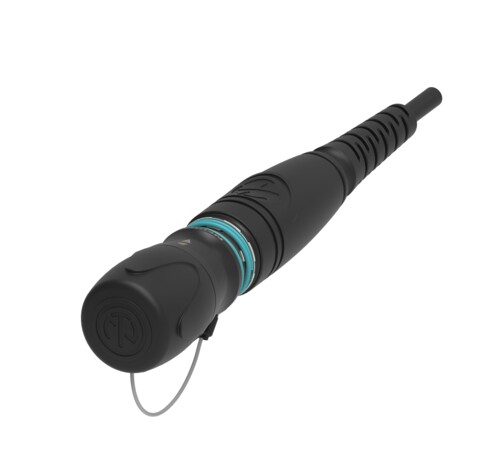

opticalCON QUAD MED Cable

Pre-assembled male cable with 4 multimode fiber channels. QUAD MED is based on LC connectors but eliminates its weakness and guarantees a safe, dust protected and rugged connection. The QUAD MED cable connector accommodates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn.

The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover. The cable connector comes pre-assembled and is not available as a single component.

Suitable chassis connectors are NO4FDW-A

Download Data Sheet
Selection of topics
Features & Benefits Technical Information
Download Data Sheet

Features & Benefits

  • Rugged 4-channel fiber optic connection system
  • For Point-to-Point multichannel routing
  • Dust and water resistant according to IP65 in mated condition
  • opticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
  • Innovative spherical shutter guarantees low maintenance
  • Easy to maintain and Nurse Proofed Design with Glove Protection
  • Suitable for medical Application like Operation Rooms (indoor)

Technical Information

Product
Title NKO4M-AM-0*
Gender Male
Mechanical
Cable retention 500 N
Insertion force < 45N
Withdrawal force < 45N
Lifetime < 5'000 mating cycles
Locking device Push/Pull
Material
Boot Rubber (EPDM)
Bushing Zinc diecast (ZnAl4Cu1)
Insert Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Polyacetal (POM) (brass)
Environmental
Flammability UL94 V-0
Temperature range -40°C to +75°C
Optical
Insertion Loss Typ. 0.3dB per connection / Max. 0.45dB per connection
Channels 4
Optical Wiring ISO/IEC 11801
