opticalCON QUAD ARMORED
The stainless steel armoring of opticalCON ARMORED cable is enormously robust to resist extraordinary abuse. Even with the armoring, the cable remains flexible and easy to handle.
The opticalCON QUAD cable connector accommodates four PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover.
The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on a drum, or air spooled.
- opticalCON ARMORED cable for demanding applications like touring / rental or outdoor broadcast
- opticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
- Offers a cut-proof and rodent-resistant double-jacket, glass-yarn armored cable construction
- Rugged 4-channel fiber optic connection system
- For Point-to-Point multichannel routing
- Innovative spherical shutter guarantees low maintenance
- Dust and water resistant according to IP65 in mated condition
- Resistant up to 200 kg/m2
Technical Information
| Product | |
|---|---|
| Flamabilty | UL94 HB |
| Mechanical | |
|---|---|
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 5000 mating cycles |
| Wiresize | |
| Environmental | |
|---|---|
| Temperature range | -40 °C to +75 °C |
| Protection class | in mated condition IP65 |
| Optical | |
|---|---|
| Insertion loss | < 0.5 dB / connection dB |
| Optical wiring | ISO / IEC 11801 |
| Mobile cable | |
|---|---|
| Colour | black, matte |
| minimal bending radius | 10.5 cm |
| Weigth | 231 kg/km |
Fiber optic cleaning kit
Fiber Optic Measurement Devices
Weatherproof opticalCON QUAD coupler (adapter) for cable extensions
Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)
Rubber coated pollutant-protection cover for opticalCON cable connectors including front housing.
The pulling sock simplifies the installation at a pulling force
The pulling sock simplifies the installation at a pulling force.

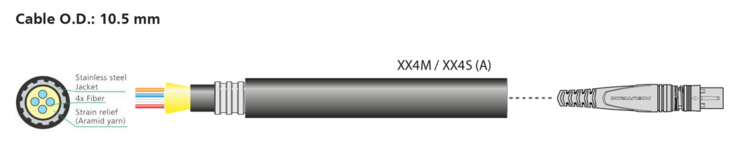

Cable cross section
