opticalCON MTP® 24 Cable
Assembled, rugged and lightweight 24-channel mobile field cable, excellent cable retention due to aramid yarn, black PUR outer jacket, available in single (APC) and multi mode (PC).

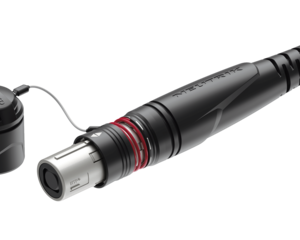

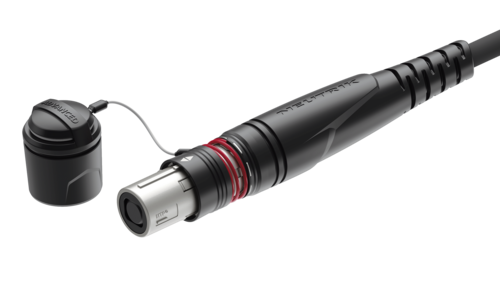

The opticalCON MTP® cable connector accommodates 24 optical fibers (multimode PC or single mode APC) based on conventional and proven MTP® connectivity protected by a ruggedized and durable all-metal housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The optical connection is exceptional well protected against dirt and dust by an automatically operated sealing cover.
The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on drum or airspool.
- Ruggedized and dirt-protected 24-channel fiber optic connection system
- For point-to-point multichannel routing based on MTP® technology
- Cable connector features rugged metal housing and heavy-duty cable retention
- Spherical shutter guarantees low maintenance
- Dust and water resistant according to IP65 in mated condition
- Easy to clean, no special tools required
- Reliable Push-Pull locking mechanism
- Cable connector comes pre-assembled with a choice of mobile field cables
- Type-A:2-2 according to TIA 568.3-D definition
Technical Information
| Product | |
|---|---|
| Title | opticalCON MTP® 24 Cable |
| Mechanical | |
|---|---|
| Cable retention | > 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 2'500 mating cycles |
| Wiresize | |
| Locking device | Push-Pull |
| Material | |
|---|---|
| Boot | Rubber (EPDM) |
| Bushing | ZnAl4Cu1 |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Strain relief | Brass (CuZn39Pb3) + PU, Ni |
| Environmental | |
|---|---|
| Temperature range | -40 °C to +75 °C |
| Protection class | in mated condition IP65 |
| Optical | |
|---|---|
| Insertion loss | < 0.9 dB |
| Optical connector | MTP® ELITE female |
| Optical wiring | Method A |
| Mobile cable | |
|---|---|
| Colour | black, matte |
| Core diameter | Singlemode 9 µm, Multimode 50 µm OM3 |
| Cladding diameter | 125 µm |
| Comment | PUR |
| minimal bending radius | 8.2 cm |
| Number of fibers | 24 |
| Cable retention | Aramid yarn |
| Weigth | 43 kg/km |
| Overall diameter | 7 mm |
Fiber optic cleaning kit
Fiber Optic Measurement Devices
Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)
Rubber coated pollutant-protection cover for opticalCON cable connectors including front housing.
The pulling sock simplifies the installation at a pulling force
DRY Cleaner MTP® , cleaning brush for guidance holes
Distributor stock search
Enter part number and search Neutrik USA distributor's stock.

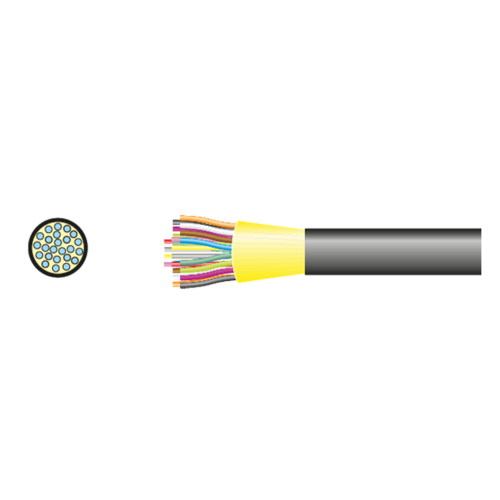

Cable cross section
