opticalCON DUO ARMORED
The stainless steel armoring of opticalCON ARMORED cable is enormously robust to resist extraordinary abuse. Even with the armoring, the cable remains flexible and easy to handle.
The opticalCON DUO cable connector accommodates two PC optical channels based on conventional and proven LC connectivity protected by a ruggedized and durable all-metal housing. It features a spring-loaded push-pull locking mechanism and excellent cable retention utilizing aramid yarn. The optical connection is exceptionally well protected against dirt and dust by an automatically operated sealing cover.
The cable connector comes pre-assembled and is not available as a single component. The cable is available in different lengths and is packed either in a case, on a drum, or air spooled.
- opticalCON ARMORED cable for demanding applications like touring / rental or outdoor broadcast
- opticalCON multi mode fiber cables offer laser and bend optimized OM3 fibers
- Offers a cut-proof and rodent-resistant double-jacket, glass-yarn armored cable construction
- Rugged 2-channel fiber optic connection system
- For Point-to-Point multichannel routing
- Innovative spherical shutter guarantees low maintenance
- Dust and water resistant according to IP65 in mated condition
- Limited 100 m
Technical Information
| Product | |
|---|---|
| Title | opticalCON DUO ARMORED |
| Mechanical | |
|---|---|
| Cable retention | 500 N |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 5000 mating cycles |
| Wiresize | |
| Environmental | |
|---|---|
| Temperature range | -40°C to +75 °C |
| Protection class | in mated condition IP65 |
| Optical | |
|---|---|
| Optical wiring | ISO / IEC 11801 |
| Mobile cable | |
|---|---|
| Colour | black, matte |
| minimal bending radius | 10.5 cm |
| Weigth | 221 kg/km |
Fiber optic cleaning kit
Fiber Optic Measurement Devices
Neutrik opticalCON field assembly kit based on Corning UniCam pre-polished LC connectors
Weatherproof opticalCON DUO coupler (adapter), LC-Duplex, 4 copper wires (0.75 mm²).
Color coding ring for opticalCON cable and chassis connectors (SCNO-FDW-A)
Rubber coated pollutant-protection cover for opticalCON cable connectors including front housing.
The opticalCON Transceiver Adapter connects an opticalCON chassis (NO2-4FDW*) and a LC SFP transceiver
The pulling sock simplifies the installation at a pulling force
The pulling sock simplifies the installation at a pulling force.
Noise cancelling rubber protection cover for opticalCON cable connectors, including front housing.

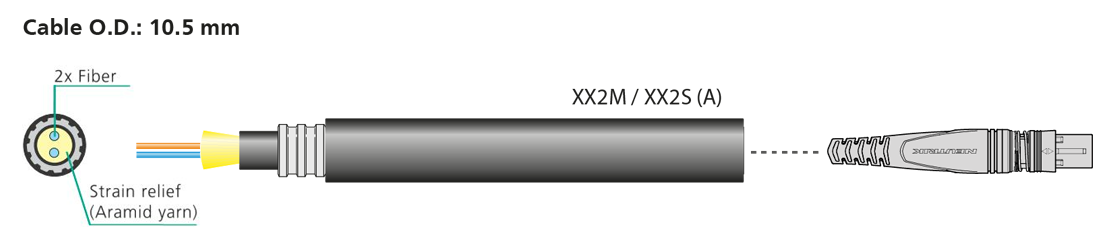

Cable cross section
