NYS-SPCR1

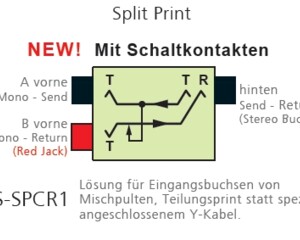

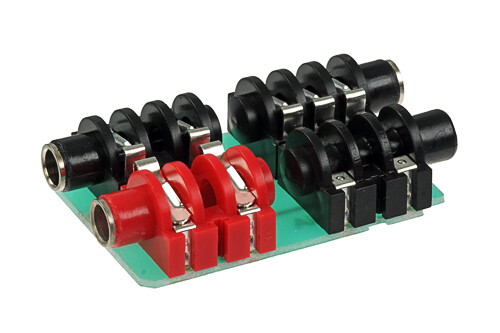

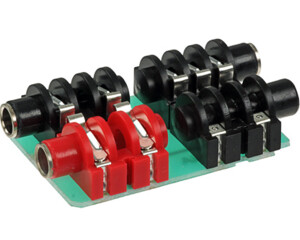

Module with switching contacts for NYS-SPP-L1. Solution for insert jack of mixing consoles, Split print by-passes the use of a special wired Y-Cable.
Downloads
Technical Information
| Product | |
|---|---|
| Title | NYS-SPCR1 |
| Connection Type | Patch Panel |
| Electrical | |
|---|---|
| Signal Type | AES/EBU Signals (digital) |
| Contact resistance | < 10 mΩ |
| Contact resistance | < 10 mΩ |
| Dielectric strength | 1 kVdc |
| Frequencyrange | DC to > 50 MHz |
| Insulation resistance | > 1 GΩ @ 500 V dc |
| Channel separation | > 100 dB @ 10 kHz, 600 terminated > 40 dB @ 6 MHz, 110 terminated |
| Handles Phantom Power | Yes |
| Mechanical | |
|---|---|
| Insertion force | < 20 N |
| Withdrawal force | > 10 N |
| Lifetime | > 10000 mating cycles |
| Wiresize | |
| Locking device | Retention spring |
| Material | |
|---|---|
| Contacts | Bronze, tin plated (Switch contacts) |
| Shell | ABS (Jacks) |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
