neutrik > Products > NRJ6HF

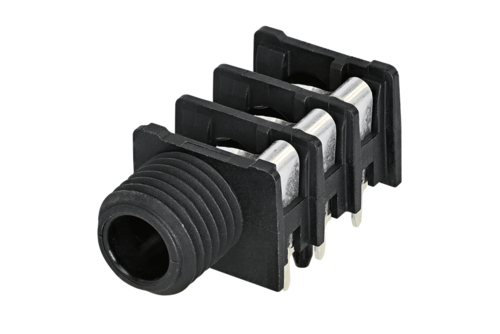

NRJ6HF

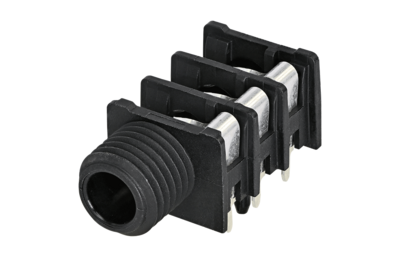

NRJ6HF

1/4" stereo jack, switched, fully threaded nose

Horizontal PCB panel mount jack featuring high board packing density by mounting on 15.88 mm (0.625 inch) minimum centers in rows or arrays. Mounting hardware must be ordered separately.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • High boarded packing densities
  • A retentions spring ensures optimum grip on inserted plugs, avoiding the chance of lost connection
  • Mounting nuts available in various styles

Downloads

  • Drawing NRJ6HF
  • Drawing NRJ6HF
  • 3D File NRJ6HF
  • Product Guide - Section Plugs and Jacks
  • Jack Circuits

Technical Information

Product
Title NRJ6HF
Connection Type Jack
Gender female
Electrical
Contact resistance < 10 mΩ
Contact resistance < 25 mΩ
Dielectric strength 1 kVdc
Insulation resistance ≥ 1 GΩ @ 500 V dc
Rated current per contact 3 A
Rated current per contact 0,50 A @ 50 V (Switch contact)
Switching contacts 3
Mechanical
Insertion force < 30 N
Withdrawal force > 10 N
Lifetime > 10000 mating cycles
Panel thickness < 3 mm
Wiresize
Wiring Horizontal PCB mount
Locking device Retention spring
Mounting direction Rear mounting
Chassis shape 11.2 mm
Material
Cap / Nut / Washer PA 6.6 15% GR
Contact plating 2 µm Ag
Contacts Bronze (CuSn6)
Shell Polyamide (PA 6.6 30 % GR) UL 94 V0
Ring Nut Brass (Ni plated)
Environmental
Standard compliance EIA RS 453, IEC 60603-11
Solderability Complies with IEC 60068-2-20
Temperature range -25 °C to +70 °C

Accessories

dummyPLUG Case
CAS-DUMMY
NDJ
NDJ
NRJ-NUT-B
NRJ-NUT-B
NRJ-NUT-MK
NRJ-NUT-MK
NRJ-NUT-MS
NRJ-NUT-MS
NRJ-NUT-R
NRJ-NUT-R
NRJ-WB
NRJ-WB
