NOSPS-LC50-LC50

Download Data Sheet

Single mode PC 1 x 2 LC* splitter to split a fiber signal (100 - 50/50). Splitter can be used with NZPFD-2.

Color coding: blue

* other connectors (SC, ST, E2000) on request

Features & Benefits
  • Fiber based splitter for 1310nm and/or 1550nm bands
  • Low excess loss
  • Low polarisation dependent loss (PDL)
  • Excellent mechanical and environmental performance
Downloads
reference-projects---opticalcon
pdf - 4.96 MB
NEUTRIK opticalCON Guide – NF05 V32 – 202506
pdf - 51.19 MB
Accessories
audio
NZPFD-2

Panel frame plate opticalCON for 2 opticalCON DUO or QUAD chassis connectors
audio
NZPFD-4SC

*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and two SC duplex chassis connectors

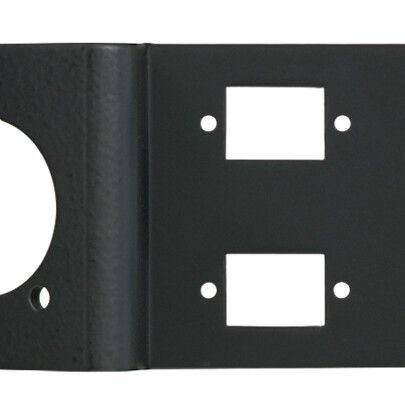

NZPFD-4SC-S

Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and four SC simplex or four Single E2000 feedthroughs
audio
NZPFD-4ST

*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and four ST chassis connectors
audio
NZPFD-4E

*** DISCONTINUED *** Panel frame plate opticalCON for one opticalCON DUO or QUAD chassis and two E2000 compact chassis connectors

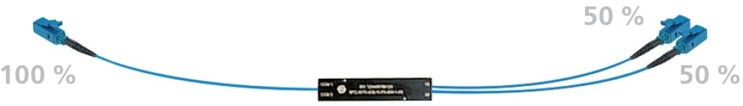

Splitter LC

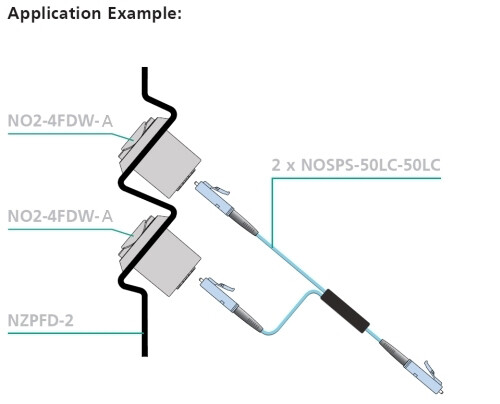

Splitter Application Example
