NM3FD-B

Download Data Sheet

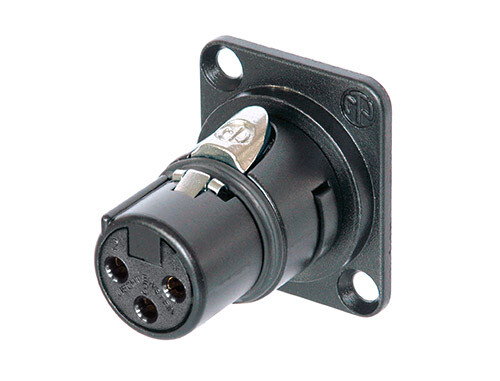

3 pole XLR female module, D-shape, black plated, solder contacts

Downloads
nm3fd-b-1
pdf - 87.47 KB
nm3fd-b-2
dxf - 979.27 KB
07 Section Accessories and Patch Panels PG EN 202202-V22
pdf - 7.3 MB
module_seleciton_guide
pdf - 1010.11 KB

Technical Information

Product
Title NM3FD-B
Mechanical
Wiresize
Locking device Latch lock
Mounting direction Front mounting
Material
Shell coating Black KTL
Environmental
Solderability Complies with IEC 68-2-20
Accessories

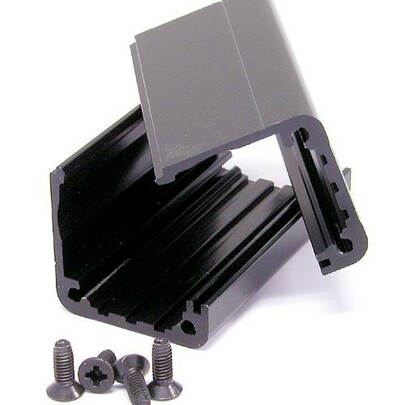

NA-Housing
NA-Housing

Extrusion profile set including screws, black plated, for combination with all D Shape connectors without rear PCB.
