NLT8FXX

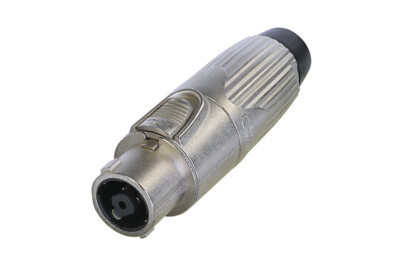

8 pole female cable connector, metal housing, chuck type strain relief, solder contacts
This connector is accepted within audio equipment designed according to IEC 62368-1 due to its component certification according to IEC 61984.
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Features & Benefits
- IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
- Current rating 30 A rms
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Precise “Quick Lock” system
- Compatible with complete speakON 8 pole product series
Downloads
Technical Information
| Product | |
|---|---|
| Title | NLT8FXX |
| Gender | female |
| Electrical | |
|---|---|
| Contact resistance | < 2 mΩ |
| Dielectric strength | 1.5 kVac |
| Insulation resistance | > 0.1 GΩ (after dampheat) |
| Rated current per contact | 30 A rms continuous (acc. to IEC 61984) |
| Rated voltage | 250 V ac |
| Attention | speakON is NOT to be used as an mains or power supply connector (AC / DC)! |
| Mechanical | |
|---|---|
| Cable O.D. | 8 - 20 mm |
| Cable retention | ≥ 220 N (subject to cable O.D. and material) |
| Lifetime | > 5000 mating cycles |
| Wiresize | 1.5 mm² - 6 mm² |
| Wiresize | 10 AWG |
| Termination | Solder contacts |
| Locking device | Quick Lock (latch) |
| Material | |
|---|---|
| Contact plating | Ag |
| Contacts | Copper Alloy |
| Shell | Zinc diecast, Nickel plated |
| Insert | Polyamide (PA 6.6) |
| Locking element | Zinc diecast |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Temperature range | -30 °C to +80 °C |
| Flammability | UL 94 V-0 |
| Protection class | IP 50 (mated condition) |
| Solderability | Complies with IEC 68-2-20 |
