neutrik > Products > powerCON > powerCON TRUE1 Cables > powerCON TRUE1 - Interconnection cordset rewirable

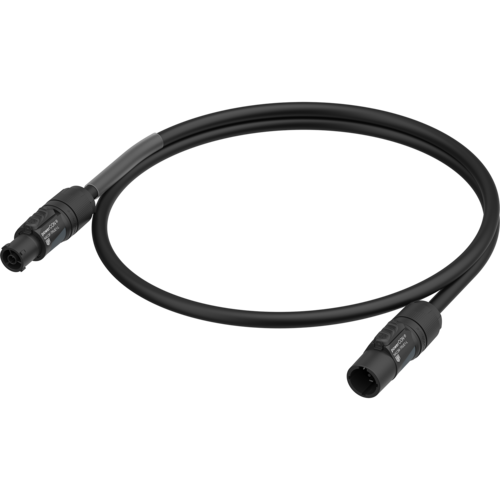

NKPH1-A1A1_Picture_01

powerCON TRUE1 - Interconnection cordset rewirable

NEUTRIK® outdoor cables with powerCON® TRUE1® TOP and high-quality H07RN cable. Ideally suited for stages and events.

Compliant with all relevant versions of IEC 60799.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Article Variations
Download Data Sheet

Features & Benefits

  • NKPH power cables assemblies are compliant with IEC 60799
  • powerCON® TRUE1® TOP power connectors are certified according to the EN60320-1
  • Connectors with Breaking Capacity (CBC)
  • IP65 rated when intermated with NEUTRIK® powerCON® TRUE1® TOP
  • High-quality rubber cables from European manufacturers

Downloads

  • CE Conformity declaration NKPH - CEU-PGD-0006-02
  • Drawing NKPH2-A2A1
  • Drawing NKPH1-A2A1
  • Drawing NKPH1-A2A1
  • Drawing NKPH2-A2A1
  • BDA 686 - Manual - CONTRIK powerCON cables - NKPH - EN
  • BDA 676 - Manual - CONTRIK powerCON cables - NKPH - DE

Article Variations

Article nameDetailsOrder code
NKPH03-A2A1-M01001 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027564
NKPH03-A2A1-M02002 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027565
NKPH03-A2A1-M05005 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027566
NKPH03-A2A1-M100010 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027567
NKPH03-A2A1-M150015 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027568
NKPH03-A2A1-M200020 m 3x1.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027569
NKPH04-A2A1-M01001 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027570
NKPH04-A2A1-M02002 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027571
NKPH04-A2A1-M05005 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027572
NKPH04-A2A1-M100010 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027573
NKPH04-A2A1-M150015 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027574
NKPH04-A2A1-M200020 m 3x2.5 mm² H07RN powerCON® TRUE1® TOP (m) (f) IP651027575

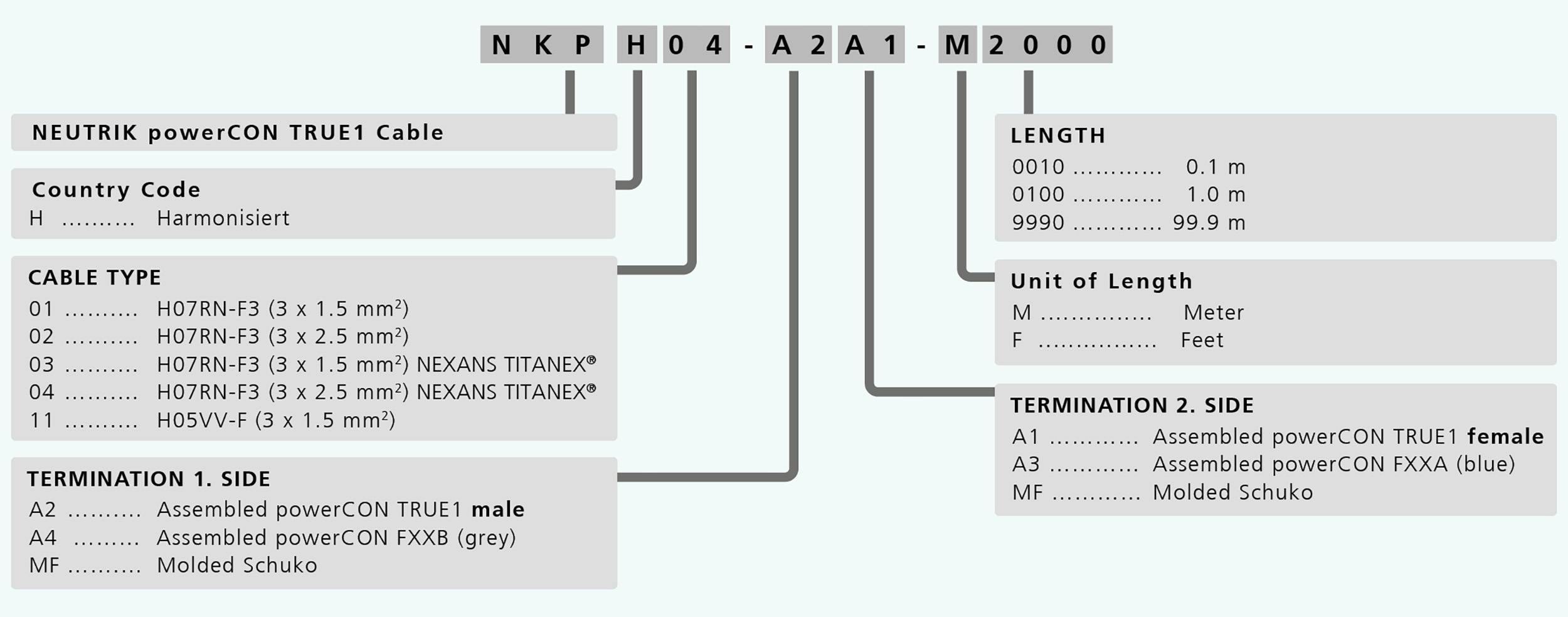

Type Descriptions

Typenschlüssel powerCON True1 Cables

CABLE TYPE 01 / 02 - OZOFLEX PRYSMIAN; CABLE TYPE 03 / 04 - TITANEX NEXANS



powerCON TRUE1 - Interconnection cordset rewirable

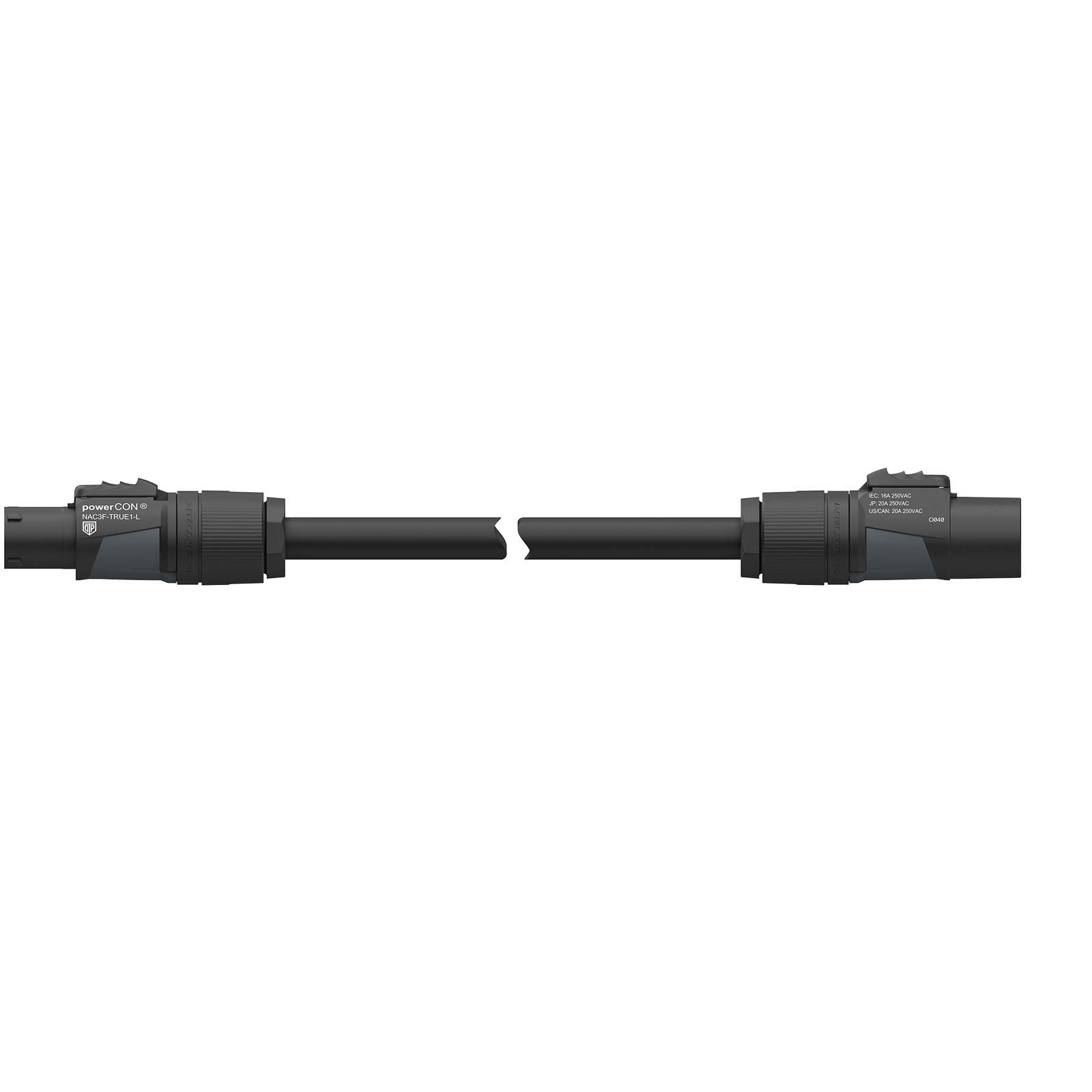

powerCON_NAC3FX-W-TOP-L-NAC3MX-W-TOP-L-cable cut_montage side_RGB
