NJ3FP6C-BAG

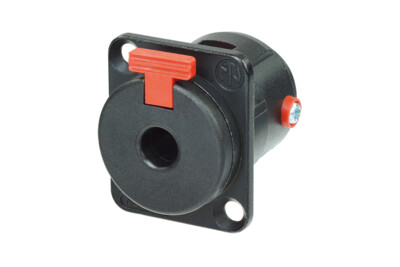

Locking 1/4" phone jack, D-size shell, black metal housing and silver contacts

The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance.

Features & Benefits

Securely locking chassis jack
Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
Dimensionally compatible with D Series (31 x 26 mm)
Solder terminals

Downloads

02 Neutrik PG EN - Section Plugs & Jacks - 202110-V24

pdf - 6.12 MB

jacks---circuits

pdf - 1.56 MB

Technical Information

Product
Title	NJ3FP6C-BAG
Connection Type	Jack
Gender	female

Electrical
Contact resistance	< 6 mΩ (initial)
Dielectric strength	1 kVdc
Insulation resistance	≥ 1 GΩ @ 500 V dc
Rated current per contact	10 A

Mechanical
Insertion force	< 30 N
Withdrawal force	< 20 N
Lifetime	> 10000 mating cycles
Locking force	> 80 N
Wiresize	1 mm²
Wiresize	18 AWG
Wiring	Solder contacts
Locking device	Latch lock
Mounting direction	Front mounting
Chassis shape	D

Material
Contact plating	2 µm Ag
Contacts	Copper alloy (CuSn6) (Ground)
Insert	Polyamide (PA 6.6 30 % GR) UL94 V-0
Shell	Zinc diecast (ZnAl4Cu1)
Shell plating	Black
Strain relief	Polyacetal (POM)
