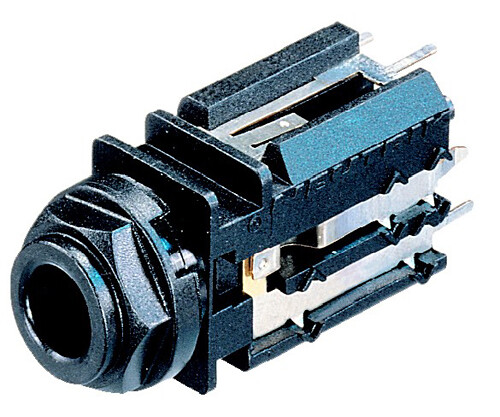

NJ3FD-V

NJ3FD-V

Non-switching stereo jack (T/R/S)

Vertical PCB mount panel jack in A-gauge version with gold plated contacts and unique quick fixing cap for rapid panel mounting. Separation of mechanical latch and electrical contacts offers high retention force combined with low insertion force.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Compact robust plastic housing provides mechanical and electrical reliability
  • Quick Cap Fixing System drastically reduces assembly time through snapping mounting cap
  • The retention force is provided by a special spring element, independent from contacts
  • Mates with plugs acc. to EIA RS-453

Downloads

  • Drawing NJ3FD-V
  • Drawing NJ3FD-V
  • Product Guide - Section Plugs and Jacks
  • Jack Circuits
  • 3D File NJ3FD-V

Technical Information

Product
Title NJ3FD-V
Connection Type Jack
Gender female
Electrical
Contact resistance < 10 mΩ (initial)
Dielectric strength 1 kVdc
Insulation resistance ≥ 1 GΩ @ 500 V dc
Rated current per contact 3 A
Mechanical
Insertion force < 20 N
Withdrawal force < 8 N
Lifetime > 10000 mating cycles
Locking force > 80 N
Panel thickness 1.2 - 1.5 mm (0.047' - 0.06')
Wiresize
Wiring vertical PCB mount
Locking device Retention spring
Mounting direction Rear mounting
Chassis shape 12 mm
Cap opening torque 25 N cm / 9.84 N in
Material
Cap / Nut / Washer Polyacetal (POM)
Contact plating 0.2 µm Au
Contacts Bronze (CuSn6)
Shell Polyamide (PA 6.6 30 % GR)
Environmental
Standard compliance EIA RS 453, IEC 60603-11
Solderability Complies with IEC 68-2-20
Temperature range -25 °C to +70 °C

Accessories

dummyPLUG Case
CAS-DUMMY
NDJ
NDJ
