NF2D-B-6
*** DISCONTINUED ***

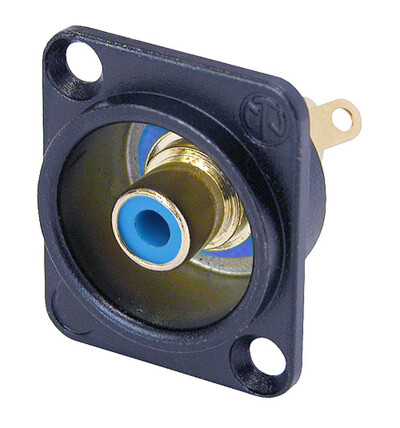

Phono socket in black chrome D-shape housing, blue isolation washers, solder version.
Features & Benefits
- Precisely machined to our demanding quality standards
- Gold plated contacts
Downloads
Technical Information
| Product | |
|---|---|
| Title | NF2D-B-6 |
| Connection Type | RCA |
| Gender | female |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 9 pF |
| Contact resistance | <5G mΩ |
| Dielectric strength | 0,5 kVdc |
| Insulation resistance | < 5 GΩ |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Lifetime | > 2000 mating cycles |
| Wiresize | |
| Wiring | Solder contacts |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Material | |
|---|---|
| Contacts | Brass (CuZn39Pb3) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Contact plating | 0.05 µm Au over 2 µm Ni |
| Environmental | |
|---|---|
| Flammability | UL 94 HB |
| Standard compliance | IEC 601-14 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
