neutrik > Products > NE8MX6-B
NE8MX6-B

NE8MX6-B

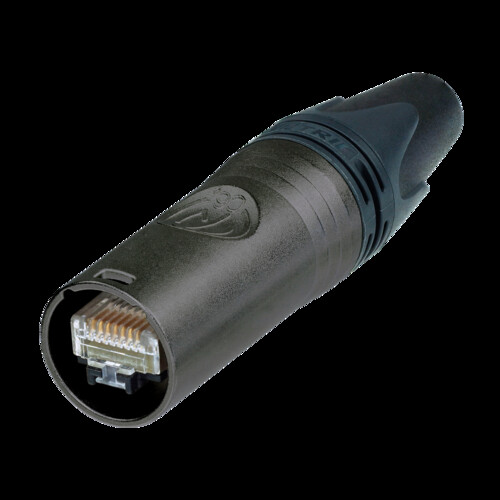

etherCON CAT6A cable connector self-termination, for insulation diameter > 1.1 mm, black plating

The set NE8MX6-B includes a cable plug carrier offering a robust metal shell, proven Neutrik chuck-type strain relief and a CAT6A RJ45 plug. The set is suitable for a cable diameter range of 7 mm to 9.5 mm and wire gauge of AWG24/1 - AWG22/1 (solid) or AWG24/7 - AWG22/7 (stranded).

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

If the insulation diameter is ≤ 1.1 mm please refer to NE8MX-B-T.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2
  • PoE++ compliant according to 802.3bt Type4
  • IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief

Downloads

  • Assembly Instruction - etherCON C6A - Cable Connector
  • Test Report - etherCON NE8MX6
  • Technical Paper - etherCON CAT6A
  • Test Report - etherCON NE8FDX-_6-W
  • Neutrik White Paper - Next generation Ethernet - Cat6A
  • Drawing NE8MX6
  • Drawing NE8MX6

Technical Information

Product
Title NE8MX6-B
Gender male
Electrical
Dielectric strength 1 kVdc
Insulation resistance > 0.5 GΩ
Rated current per contact 1.5 A
Transmission performance CAT6A, acc. TIA/EIA rating
CAT6A, acc. IEC/ISO/EN rating
Power over Ethernet PoE++ acc. IEEE 802.3bt
Mechanical
Cable O.D. 7.0 - 9.5 mm
Lifetime > 1000 mating cycles
Wiresize AWG 24/1 - AWG 22/1 (solid)
AWG 24/7 - AWG 22/7 (stranded)
Locking device Latch lock
Insulation diameter 1.1 - 1.6 mm
Material
Bushing PA / PU
Contact plating Au
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief POM
Environmental
Protection class IP 65 (in combination with NE8FDX-*6-W)
Temperature range -40 °C to +70 °C

Accessories

HTXX-14
HTXX-14
HX-CAT6A
HX-CAT6A
XXR
XXR-*
XXCR
XXCR
8MX6
8MX6
Add a description ...
NE8FFX6-W
