neutrik > Products > etherCON RJ45 Connectors > etherCON Cable Connectors > etherCON Cable Connector Carrier > NE8MX-1

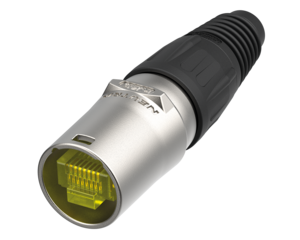

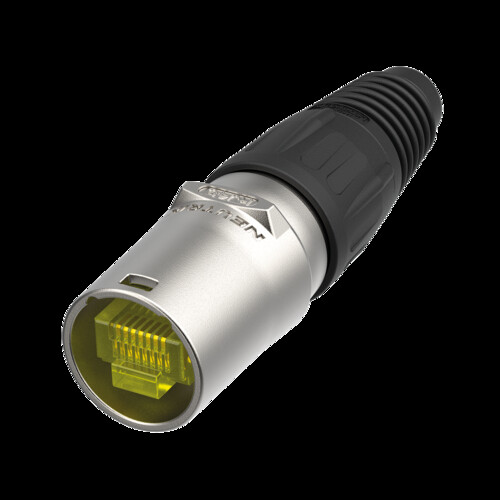

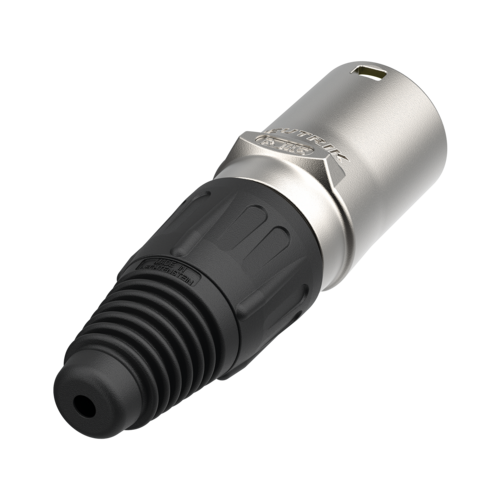

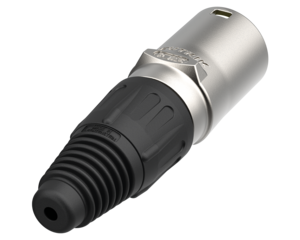

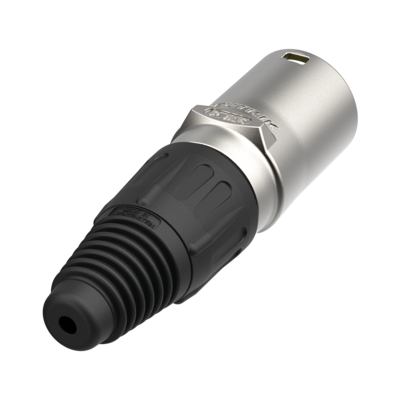

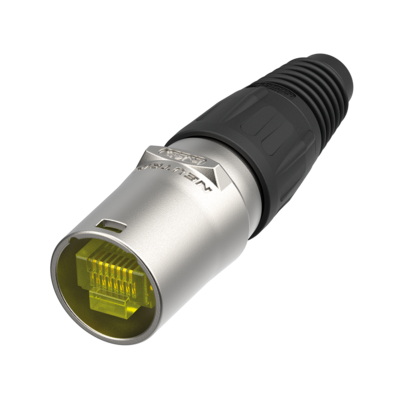

NE8MX-1

NE8MX-1

Cable connector carrier consists of a nickel shell, chuck and boot. The boot (same as X-series) is suitable for cable diameters from 3.5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Distributor Stock Search Technical Information Accessories
Download Data Sheet

Features & Benefits

  • The RJ45 system for harsh and demanding environment
  • Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
  • Rugged diecast shell and unique chuck type strain relief
  • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
  • Allows assembly of non pre-assembled conventional RJ45 cables
  • Accessories include color coded boots in 9 standard colors

Downloads

  • Drawing NE8MX-1
  • Drawing NE8MX-1
  • etherCON compatible RJ45 connectors
  • Assembly Instruction NE8MX-1 & NE8MX-B-1

Distributor stock search

Enter part number and search Neutrik USA distributor's stock.

Technical Information

Product
Title NE8MX-1
Gender male
IMPORTANT Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!
Mechanical
Cable O.D. 3.5 - 8 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Material
Boot Polyamide (PA 6)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Temperature range -30 °C to +80 °C

Accessories

BSX
BSX-*
Add a description ...
NE8FFX6-W
HTX
HTX
