neutrik > Products > NE8FDY-C6-B
NE8FDY-C6-B

NE8FDY-C6-B

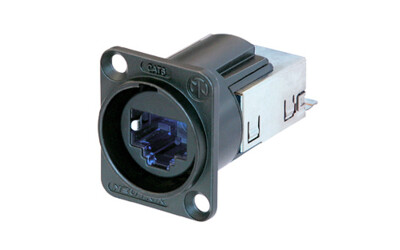

The etherCON CAT6 D-shape panel connectors with black metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast.

Attention! Intermates ONLY with NE8MC6-MO, NKE6S-* and generic RJ45 connectors.
Not compatible with the etherCON cable connector carriers NE8MC*, NE8MX* and the CAT6A cable connectors NE8MX6*.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • CAT6 compliant - data rate up to 10 GBit/s
  • CAT6 performance - fast data transmission and high bandwidth applications
  • CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Ground lead jumper on panel connector with selectable grounding option
  • Gas-tight IDC termination without tool

Downloads

  • Drawing NE8FDY-C6
  • Drawing NE8FDY-C6
  • 3D File NE8FDY-C6-B
  • Assembly Instruction - etherCON CAT6 Chassis Connector
  • Expert's report etherCON CAT6 IP65

Technical Information

Product
Title NE8FDY-C6-B
Gender female
Electrical
Contact resistance < 50 mΩ
Dielectric strength 1 kVdc
Frequencyrange 1 - 250 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1,5 A
Rated voltage ≤ 57 V
Transmission performance CAT6A acc. to TIA/EIA 568C channel specifications
CLASS EA acc. to ISO/IEC 11801 channel specifications
Power over Ethernet PoE type 4 class 8 (100W) acc. IEEE 802.3bt
Mechanical
Insertion force ≤ 40 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Panel thickness max. 3 mm , 0.12''
Wiresize solid: 0.205 - 0.324 mm² (AWG 24 – AWG 22)
Wiresize stranded: 0.141 – 0.355 mm² (AWG 26/7 – AWG 22/7)
Locking device Push-Pull
Chassis shape D
Material
Contact plating 0.7 µm Au over 1.2 µm Ni plating
Contacts Bronze (CuSn8)
Insert Polycarbonate
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief Stainless steel
Environmental
Flammability UL 94 HB
Protection class IP 65
Temperature range -10 °C to +60 °C
Standard compliance ISO/IEC 11801-1 Ed. 1.0 (2017-11)
IEC 60603-7-3 Ed.2.0 (2010-04)
IEC 60512-99-002 Ed.2.0 (2022-01)
IEC 60512-9-3 (2011-06)
