neutrik > Products > NE8FDV-Y110-B
NE8FDV-Y110-B

NE8FDV-Y110-B

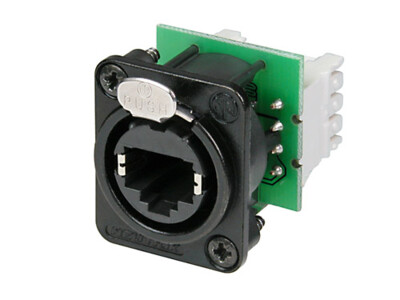

Panel mount receptacle with IDC 110 punch down terminals, black D-shape metal flange with latch lock, max. panel thickness 4 mm, mounting screws included

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.
The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • Accommodates NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
  • Selectable ground - panel connection
  • Easy and quick mounting using 110 type punch down terminals

Downloads

  • Drawing NE8FDV-Y110
  • Drawing NE8FDV-Y110
  • 3D File NE8FDV | NE8FDV-B
  • Assembly Instruction - etherCON Chassis Connectors with Cable Termination

Technical Information

Product
Title NE8FDV-Y110-B
Gender female
Electrical
Contact resistance < 10 mΩ
Dielectric strength 1 kVdc
Frequencyrange 1 - 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1,5 A
Rated voltage < 50 V
Transmission performance CAT 5e
Standard compliance TIA/EIA 586B, IEC11801
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Panel thickness max. 4 mm 0.16'
Wiresize 0.14 - 0.5 mm²
Wiresize 26 - 20 AWG
Wiring IDC 110 punch down terminals
Locking device Latch lock
Chassis shape D
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Insert PBTP 15 % GR
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
Strain relief CuZn35Pb2, Tin plated
Environmental
Flammability UL 94 V-0
Temperature range -30 °C to +80 °C

Accessories

DSS
DSS-*
E-SCREW1-12 B
E-SCREW1-12 B
E-SCREW1-12NI
E-SCREW1-12NI
SCDP
SCDP-*
SCDX geschlossen
SCDX
SE8FD
SE8FD
SCCD-W
SCCD-W
SE8FD-TOP
SE8FD-TOP
