NC5MX-HD
PHASE OUT
direct replacement / successor: NC5MXX-HD
alternative product: NC5MX1-TOP

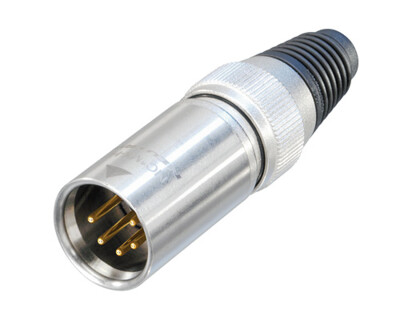

5 pole male cable connector, "heavy duty", metal boot and stainless steel shell, gold contacts
The X-HD Series is a "Heavy duty" XLR cable connector for outdoor use. All metal design, dust and water protected according to IP 65 by mating with related X-HD cable connector or MPR-HD chassis connector. Gold contacts are standard.
Features & Benefits
- "Heavy duty" cable connector for outdoor use
- All metal design
- Male connector in stainless steel
- NC*MX-HD mates with NC*FX-HD cable connector
- Dust and water protected according IP 65 in mated condition
- Gold contacts
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
Downloads
Technical Information
| Product | |
|---|---|
| Title | NC5MX-HD |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 7 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 7,5 A |
| Rated voltage | < 50 V |
| Mechanical | |
|---|---|
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 1.0 mm² |
| Wiresize | max. 18 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Boot | Polyurethan |
| Bushing | Stainless steel |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 66) |
| Locking element | Stainless steel |
| Shell | Stainless steel |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Approvals | UL |
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 65 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
