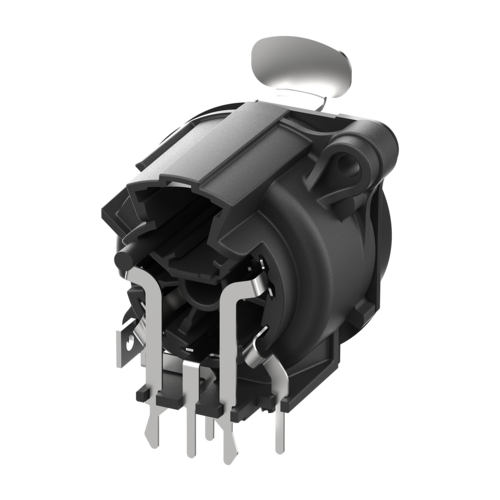

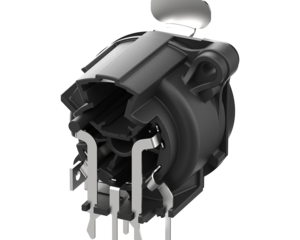

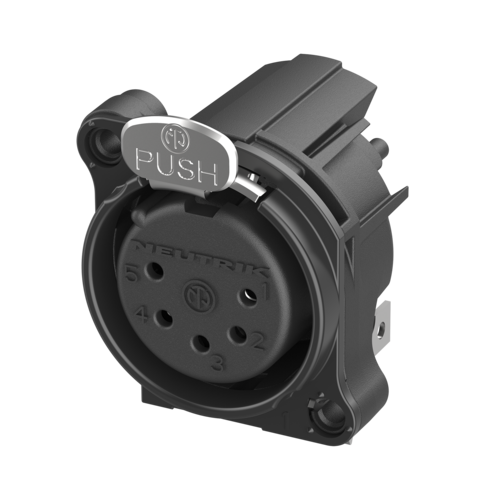

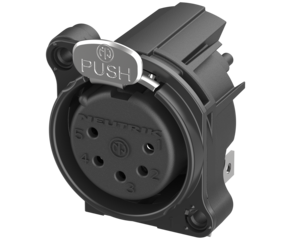

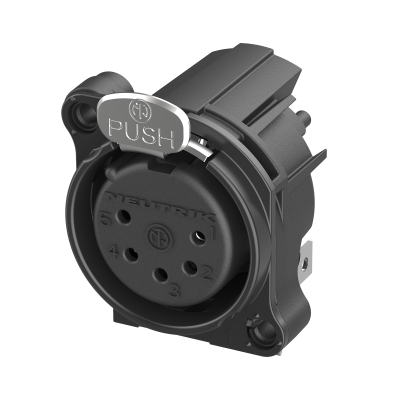

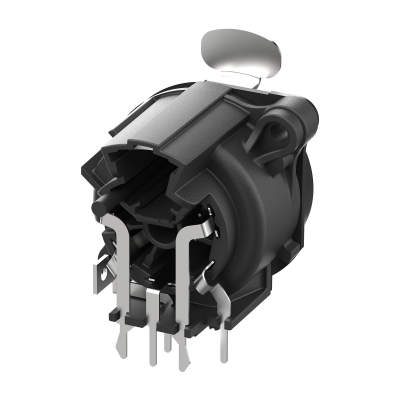

NC5FBH1-B

This series not only stands out with its proven features such as a compact design, flame retardancy in accordance with UL94-V0, and excellent electrical performance but also incorporates an innovative, enhanced contact system. This new design offers additional advantages, particularly in terms of vibration resistance. Thanks to these improvements, the new products are perfectly suited to meet the demands of challenging applications, providing you with reliable solutions for your needs.

Features & Benefits

Smallest XLR receptacles
highest packing density
New enhanced contact system
Metal mounting flange featuring continuous circumferntial ground contact to chassis for best EMC and RF protection
Flame retardant (V0, halogen free)

Downloads

3D Model NC5FBH1-B (STP)

stp - 5.51 MB

3D Drawing NC5FBH1-B (PDF)

pdf - 1.78 MB

Drawing NC5FBH1-B (PDF)

pdf - 404.66 KB

Drawing NC5FBH1-B (DXF)

dxf - 2.19 MB

Product Manual - XLR Chassis Connector B Series 5-Pole

pdf - 1.59 MB

Technical Information

Product
Title	NC5FBH1-B
Product family	xlrCON
Connection type	chassis connector
Gender	female

Electrical
Capacity between contacts	≤ 7 pF
Contact resistance	≤ 12 mΩ
Dielectric strength	1,5 kVdc
Insulation resistance	> 10 GΩ (initial)
Rated current per contact	3 A
Rated voltage acc. to UL1977	50 VAC
Grounding Options	Seperate ground contact connected to mating connector shell and front panel, no connection to Pin 1

Mechanical
Insertion force	≤ 20 N
Withdrawal force	≤ 20 N
Lifetime	min. 1000 mating cycles
Locking device	Latch lock
Wiring	Horizontal PCB mount
Chassis shape	B
Mounting direction	rear mounting
Mounting	A-Screw

Material
Contact	Bronze (CuSn6)
Contact plating	partial gold / Ni / Tin
Insert	PA66
Locking element	Steel Ck67
Locking element plating	Nickel
Ring	Zinc diecast (ZnAl4Cu1)
Ring plating	Black KTL
