NC3MXX-EMC

NC3MXX-EMC

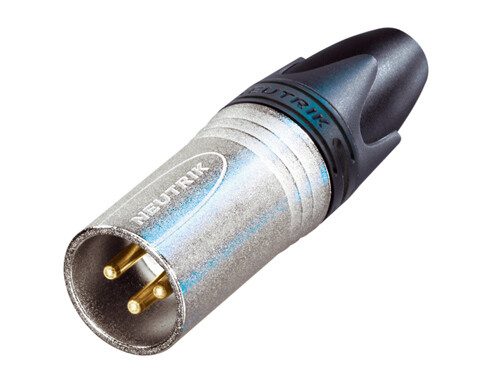

3 pole male EMC-XLR cable connector

The EMC-XLR Series is a specifically designed version of the XX series to give enhanced RF screening for critical applications in live performance and recording where there are particular problems with radio transmission or mobile phones. The design guarantees a continuous RF shield connection from the cable to the chassis connector housing via a circular capacitor around the cable shield. The circular capacitors act as high-pass filter with a cut-off frequency around 10 MHz.
An EMI suppression ferrite bead with 24 Ohm at 1 MHz between pin 1 and the cable screen provides a low-pass filter for improved RF rejection.

Download Data Sheet
Selection of topics
Features & Benefits Downloads Technical Information Accessories
Download Data Sheet

Features & Benefits

  • 3 pole male and female XLR cable connector with integrated capacitive shield to shell connection
  • Circular capacitor around the cable shield enables low-inductive shield connection to connector housing
  • Cable shield - Pin 1 connection includes EMI suppression bead to block high frequencies
  • Avoid ground loops as there is no LF-shield connection to ground
  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses



Downloads

  • Drawing NC3MXX-EMC
  • Drawing NC3MXX-EMC
  • 3D File NC3MXX
  • Assembly Instruction - EMC XLR
  • Typical Applications EMC XLR
  • Product Guide - Section XLR

Technical Information

Product
Title NC3MXX-EMC
Connection Type XLR
Gender male
Electrical
Capacitance between contacts ≤ 4 pF
Contact resistance ≤ 3 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 10 GΩ (initial)
Rated current per contact 5 A
Rated voltage < 50 V
Mechanical
Cable O.D. 3.5 - 8.0 mm
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Wiresize max. 0.75 mm²
Wiresize max. 20 AWG
Wiring Solder contacts
Locking device Latch lock
Material
Boot Polyurethan
Contact plating 0.2 µm Au hard alloy over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking element Zinc diecast (ZnAl4Cu1)
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Nickel
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
