NC3FXCC
PHASE OUT
direct replacement / successor: NC3FXX-EMC

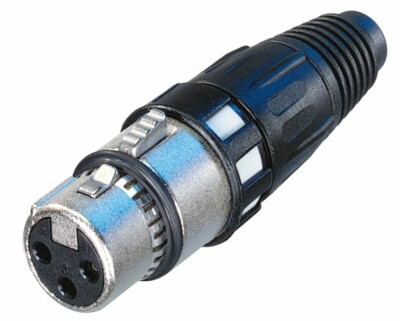

3 pole female cable connector, RF-protected, gold contacts
Cable O.D.: 5.4 - 6.2 mm
Crimp Size Shield: 6.5 mm (hex)
The XCC XLR cable connector Series with circumferential shield contact provides excellent RF-protection to transmit digital audio signals most efficient and reliable. This XLR features a coaxial ground spring and a coaxial hex crimp ferrule at the cable entrance for proper and reliable transition of the shield to the shell.
- 3 pole cable connector with a circumferential shield contact for best EMI protection
- XCCR coding ring to indicate digital AES signals included
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
Technical Information
| Product | |
|---|---|
| Title | NC3FXCC |
| Connection Type | XLR |
| Gender | female |
| Electrical | |
|---|---|
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Shielding effectiveness | > 55 dB @ 1.3 GHz |
| Mechanical | |
|---|---|
| Cable O.D. | 5.4 - 6.2 mm |
| Crimp size | 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E) |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | max. 2.5 mm² |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
|---|---|
| Boot | Polyurethan |
| Coding Ring | PA 6 15% GR |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Bronze (CuSn8) |
| Crimp ferrule | CuZn39Pb3, Ni plated |
| Insert | Polyamide (PA66) |
| Locking element | St3K32 (latch) / Ck 67 (spring) |
| Locking element plating | Nickel |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Strain relief | Polyacetal (POM) |
| Circumferential ground spring | CuSn6, Ni plated |
| Environmental | |
|---|---|
| Approvals | UL |
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |

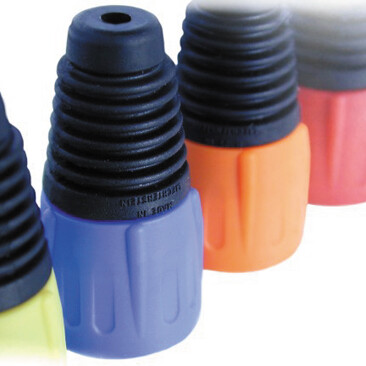

Colored bushings
Crimp tool, frame ATTENTION: Suitable dies are DIE-BNC-*
Crimp tool die for HX-BNC Pin crimping: 1.6 mm Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)
Crimp tool, frame ATTENTION: Suitable dies are DIE-R-* and DIE-R-BNC*
Crimp tool die for HX-R-BNC Pin crimping: 1.60 mm Shield and jacket: HEX crimp 6.47 mm (A), 5.00 mm (B)
Hand tool for tightening the bushing of the XLR X, XCC, FX-SPEC series and etherCON cable connector carrier series as well as the XLR XX and etherCON CAT6 series.
