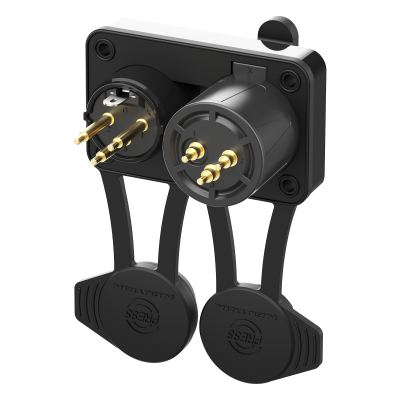

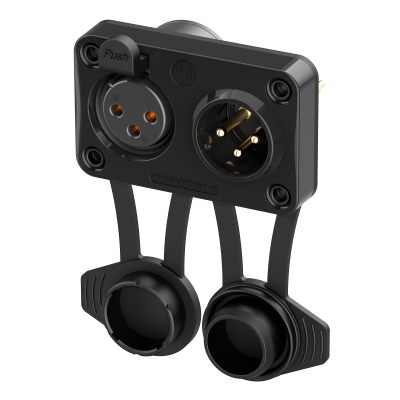

NC3FM-TOP front view NC3FM-TOP  rear view_
NC3FM-TOP front view
NC3FM-TOP  rear view_
1/2
neutrik / Products / XLR Connectors / XLR Chassis Connectors / TOP Series / NC3FM-TOP

NC3FM-TOP

Download Data Sheet

The "XLR TOP airtight" chassis connector is the perfect solution for demanding outdoor applications and the harshest conditions. This innovative product is part of the XLR product group and belongs to our signal line. With an impressive array of features and a particular focus on protection and performance, the "XLR TOP airtight" is the choice for professionals who require absolute reliability.


With the XLR TOP airtight, you can count on a secure connection, even in the most extreme outdoor conditions. Rely on its protective features and high performance to ensure signal connections that meet the most stringent requirements. Trust in TRUE OUTDOOR PROTECTION with this outstanding chassis connector from NEUTRIK – your link to the future.

Features & Benefits
  • Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
  • IP65 rating to protect from water and dust ingress (even in unmated and open sealing cap condition)
  • XLR system engineered for harsh and demanding environments
  • Flame retardant (V0)
  • Durable die-cast shell with sleek black plating
  • Easy maintenance due to front-mount design
Downloads
2D Drawing NC3FM-TOP
pdf - 589.1 KB
2D Drawing NC3FM-TOP
dxf - 2.95 MB
3D Model NC3FM-TOP
pdf - 1.49 MB
3D Model NC3FM-TOP
stp - 3.51 MB
BDA 738 V1 - XLR TOP Chassis Connector DUO
pdf - 1.49 MB

Technical Information

Product
Title NC3FM-TOP
Product Family xlrCON
Connection Type chassis connector
Gender male/female (DUO)
Electrical
Contact resistance ≤ 5 mΩ
Dielectric strength 1,5 kVdc
Insulation resistance > 5 GΩ (initial)
Rated current per contact 16A
Rated voltage acc. to UL1977 50 VAC
Mechanical
Insertion force ≤ 40 N
Withdrawal force ≤ 40 N
Lifetime min. 1000 mating cycles
Locking device Latch lock
Wiring Vertical PCB mount
Chassis shape See drawing
Mounting direction Front mount
Material
Contact Brass
Contact plating Gold
Insert PA
Locking element Steel
Locking element plating Nickel
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black KTL
Environmental
Flammability UL 94 V0
Solderability Complies with IEC 60068-2-20
Temperature range -30 °C to +80 °C
Ingress protection class IP65
