NAUSB3
Reversible USB 3.0 gender changer (type A and B), Nickel D-housing

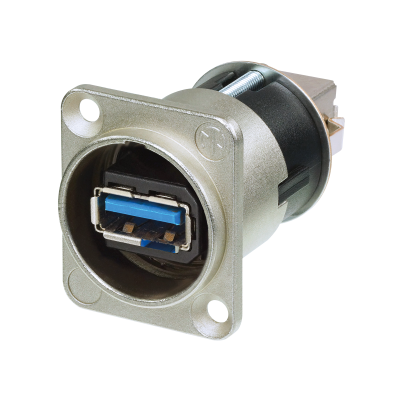

The NAUSB3 is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.
Not compatible with NKUSB-* cables.
- USB 3.0 feedthrough adapter
- Reversible insert offering type A or B on front or rear end
- Standard D-shape housing
- Removable screen for chassis grounding
- Meets USB 3.0 specifications
Technical Information
| Product | |
|---|---|
| Title | NAUSB3 |
| Connection Type | Adapter |
| Gender | female |
| Electrical | |
|---|---|
| Reading / Writing speed | >200 MB/s |
| Mechanical | |
|---|---|
| Wiresize | |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Lifetime | > 1000 mating cycles |
| Material | |
|---|---|
| Contact plating | Au |
| Contacts | Bronze (CuSn) |
| Insert | PBTP 15 % GR |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Nickel |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Standard compliance | USB 3.0 specifications |
| Temperature range | -25 °C to +85 °C |
To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.
Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc. The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools.
USB Type A in front
USB Type B in front
An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip.
We recommend to use USB-IF certified cables to ensure error-free data transmission. Maximal length of USB-IF certified USB 3.0 passive cable is 2.0 meters.
NAUSB3 Type B in front
