NAC3MX-W
*Discontinued* Please see successor powerCON TRUE1 TOP series. Connectors of both series are fully compatible.

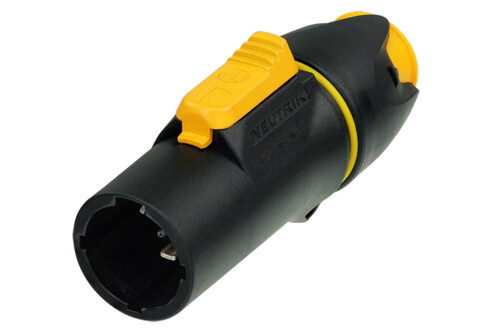

Locking male cable connector, screw terminals
The powerCON TRUE1 is a locking waterproof 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits
- True mains connector with breaking capacity (CBC)
- Lockable 16 A single phase connector (USA: 20 A)
- Dust and water resistant according to IP65 in mated condition
- Easy and reliable twist lock system
- Extremely robust and reliable
- Unique Neutrik cable retention
- ENEC certified according to IEC 60320
- UL recognized components
Downloads
nac3mx-3
pdf - 249.1 KB
nac3mx-2
dxf - 2.29 MB
nac3mx-w-top
stp - 9.53 MB
bda-531---powercon-true1-cable-connector---operating-instruction-1
pdf - 2.97 MB
bda-532---powercon-true1-power-out-connector---operating-instruction
pdf - 2.57 MB
bda-533---powercon-true1-safety-notice-1
pdf - 353.77 KB
jet-certification-nac3mx-w-1
pdf - 479.22 KB
Neutrik Product Guide - 06 powerCON and Circular Connectors PG EN 202210-V25
pdf - 7 MB
cb-certificate-nac3mx
pdf - 496.71 KB
BDA 380 - powerCON TRUE 1 - NAC3MX-W
pdf - 4.87 MB
ip-test-report
pdf - 1.61 MB
NAC3MX-W_VDE_Certificate
pdf - 147.67 KB
NEU-0011A
pdf - 179.61 KB
Links
Technical Information
| Product | |
|---|---|
| Title | NAC3MX-W |
| Electrical | |
|---|---|
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc / 2.8 kVac |
| Insulation resistance | 0,1 GΩ (after damp heat test IEC 68-2-30) |
| Number of electrical contacts | 2 + PE |
| Rated current per contact | 16 A rms (USA: 20 A) |
| Rated voltage | 250 V ac |
| Mechanical | |
|---|---|
| Cable O.D. | 6 - 12 mm |
| Lifetime | > 5000 mating cycles |
| Wiresize | 1.0 - 2.5 mm² |
| Wiresize | 12 AWG |
| Material | |
|---|---|
| Contact plating | 2 µm Ag |
| Contacts | CuNi1Si0.2 |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | ZuAl4Cu1 |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Strain relief | Polyacetal (POM) |
| Environmental | |
|---|---|
| Flammability | UL 94 V-0 |
| Protection class | IP 65 (mated) |
| Temperature range | -30 °C - +80 °C |
